TE Connectivity, AMP-IN Male PCB Connector Contact 22AWG 172782-7
Temporarily out of stock
$ 0.019
Each (On a Reel of 20000)
Live stock
Temporarily out of stock
Product details

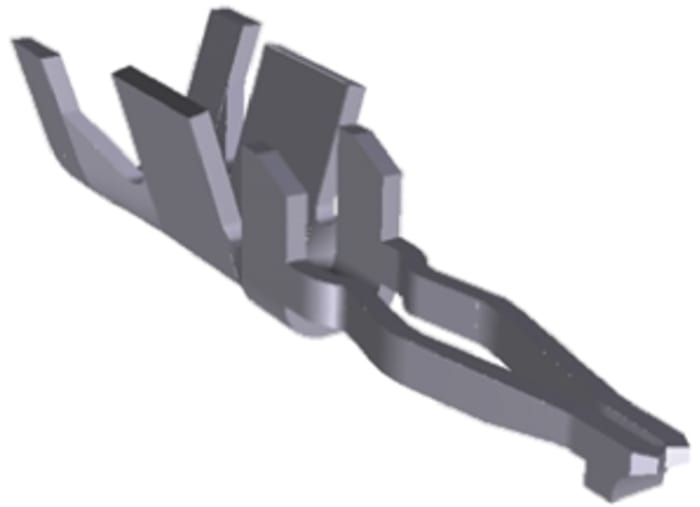

TE Connectivity Miniature AMP-IN Terminals
These Miniature AMP-IN terminals are designed as mechanical holding devices to enhance the soldering of hookup wires to the PCB. This design eliminates the need for costly manual wire preparation. The wire is accurately positioned and held in place by the AMP-IN terminals to assure proper solder flow and reliable solder joints. A terminal locking lance holds the wire securely in the PCB and insulation support provides strain relief and protects the solder joint. With a low profile height above PCB these AMP-IN terminals offer space saving and design flexibility
TE Connectivity Discrete PCB Connections
Specifications
Brand
TE Connectivity
Gender
Male
Series
AMP-IN
Minimum Wire Size mm²
0.12mm²
Termination Method
Crimp
Maximum Wire Size mm²
0.4mm²
Minimum Wire Size AWG
26AWG
Contact Plating
Tin
Maximum Wire Size AWG
22AWG
Contact Material
Brass
Series Number
172782
Maximum Contact Resistance
3mΩ
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+105°C
