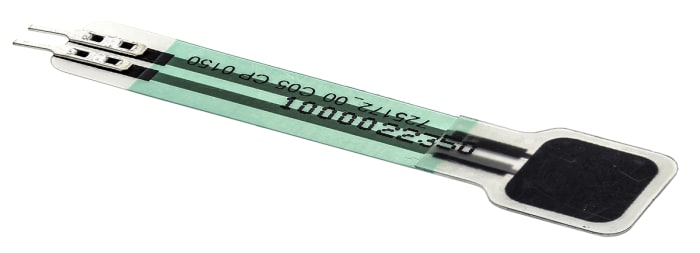

I.E.E. Strain Gauge 11.7mm, >1MΩ -30°C +170°C
RS Stock No. 189-5562
Brand I.E.E.
Manufacturers Part No. SS-U-N-S-00009
6 in stock in the UK
6 in stock in the UK
$ 21.38
Each
I.E.E. Strain Gauge 11.7mm, >1MΩ -30°C +170°C
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 4 | $ 21.38 |
| 5 - 9 | $ 20.73 |
| 10+ | $ 19.67 |
Live stock
6 in stock in the UK
Product details
I.E.E Force Sensitive Resistors - FSR
Introducing I.E.E strain gauges, they have been created and designed to measure the strain and force of an item. The gauge sticks to an item, as it deforms the electrical resistance changes - this process can sometimes be referred to as the "gauge factor". I.E.E's strain gauges can be used in a multitude of applications for strain measurement, such as keypads, medical devices and automotive products.
Strain Gauges and Amplifiers
Specifications
Brand
I.E.E.
Force Measured
Compression, Tension
Gauge Resistance
>1MΩ
Sensor Type
Low Profile
Length
48.8mm
Width
11.7mm
Minimum Operating Temperature
-30°C
Maximum Current
1 mA
Maximum Operating Temperature
+170°C
Country of Origin
BE
