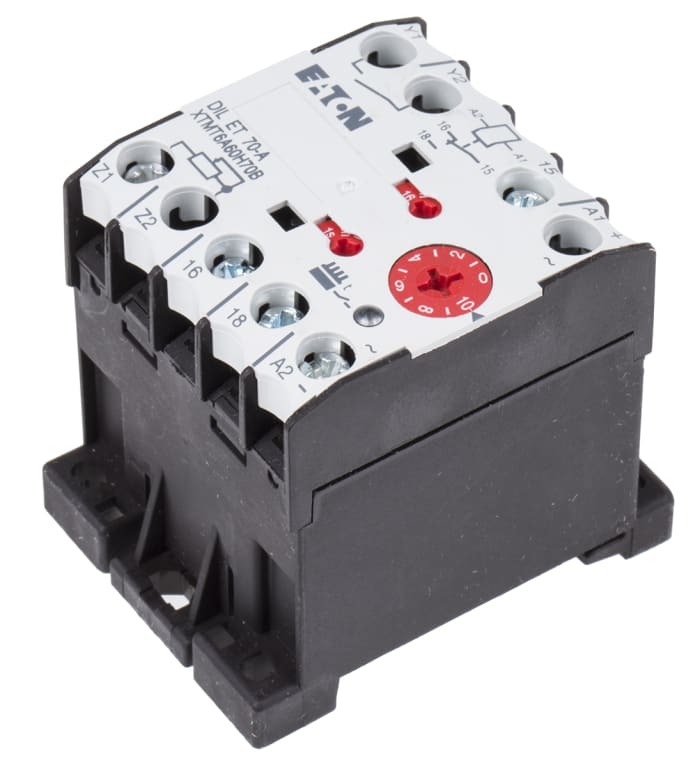

Eaton SPDT Multi Function Time Delay Relay, 24 → 240 V ac/dc 0.05 s → 60 h, DIN Rail Mount
RS Stock No. 189-3932
Brand Eaton
Manufacturers Part No. DILET70-A
Permanently discontinued
Permanently discontinued
P.O.A
Eaton SPDT Multi Function Time Delay Relay, 24 → 240 V ac/dc 0.05 s → 60 h, DIN Rail Mount
Live stock
Permanently discontinued
Product details
Electronic Timing Relays DIL ET
Moeller Dil M 3 Pole Range Timing Relays
Specifications
Brand
Eaton
Supply Voltage
24 → 240 V ac/dc
Time Range
0.05 s → 60 h
Mode of Operation
Flash, Fleeting, OFF Delay, ON Delay, Pulse Former, Pulse Generator
Mounting Type
DIN Rail
Number of Timer Functions
Multi Function
Number of Contacts
1
Time Increment
Hours, Seconds
Power Supply
External
Contact Configuration
SPDT
Current Maximum
3 A
Terminal Type
Screw
Minimum Voltage
24 V ac/dc
Maximum Voltage
240 V dc, 400 V ac
Switch Configuration
SPDT
Maximum Operating Temperature
+60°C
Depth
65.3mm
Length
58mm
Width
45mm
Time Delay
70 (Recovery) ms
Minimum Operating Temperature
-20°C
Country of Origin
DE
