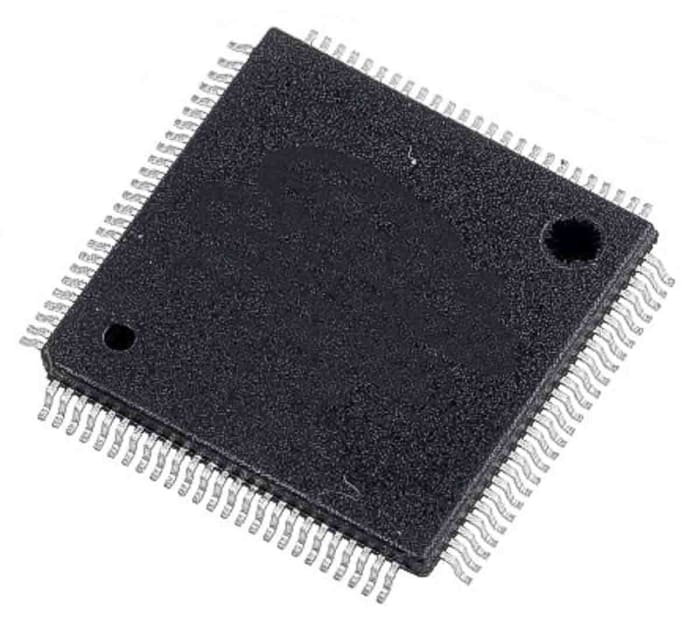

STMicroelectronics STM32L4A6VGT6, 32bit ARM Cortex M4 Microcontroller, STM32L, 80MHz, 1 MB Flash, 100-Pin LQFP
Temporarily out of stock
Back order for despatch on 07/23/2021
$ 10.724
Each (In a Tray of 90)
Live stock
Temporarily out of stock
Back order for despatch on 07/23/2021
Specifications
Brand
STMicroelectronics
Family Name
STM32L
Package Type
LQFP
Mounting Type
Surface Mount
Pin Count
100
Device Core
ARM Cortex M4
Data Bus Width
32bit
Program Memory Size
1 MB
Maximum Frequency
80MHz
RAM Size
320 kB
USB Channels
1
ADC Channels
16
Number of SPI Channels
3
Typical Operating Supply Voltage
1.71 → 3.6 V
Timer Resolution
16 bit, 32bit
Height
1.45mm
Width
14.2mm
ADC Resolution
12bit
Number of USART Channels
3
Minimum Operating Temperature
-40 °C
Dimensions
14.2 x 14.2 x 1.45mm
Instruction Set Architecture
RISC
Number of CAN Channels
2
Number of ADC Units
3
Program Memory Type
Flash
Maximum Operating Temperature
+85 °C
Number of UART Channels
3
ADCs
3 (16 x 12 bit)
Number of Timers
2
Number of I2C Channels
4
Length
14.2mm
