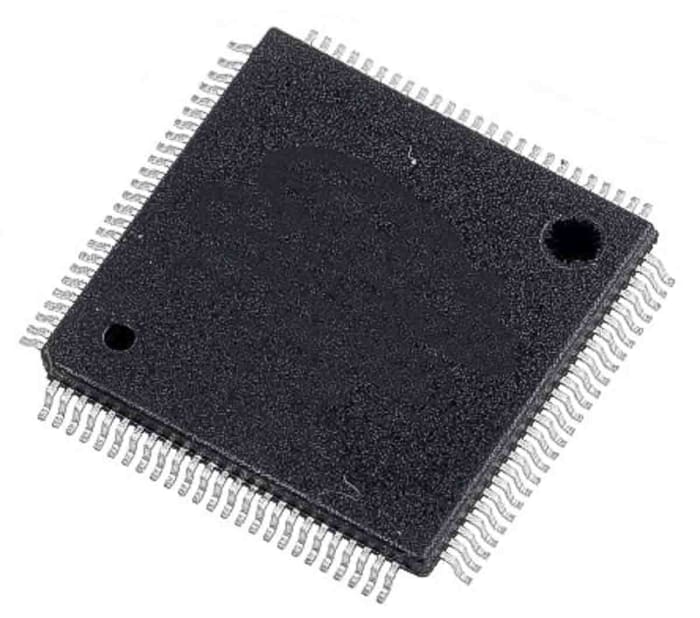

STMicroelectronics STM32L433VCT6, 32bit ARM Cortex M4 Microcontroller, STM32L, 80MHz, 256 kB Flash, 100-Pin LQFP
Temporarily out of stock
Back order for despatch on 04/23/2021
$ 5.725
Each (In a Tray of 90)
Live stock
Temporarily out of stock
Back order for despatch on 04/23/2021
Specifications
Brand
STMicroelectronics
Family Name
STM32L
Package Type
LQFP
Mounting Type
Surface Mount
Pin Count
100
Device Core
ARM Cortex M4
Data Bus Width
32bit
Program Memory Size
256 kB
Maximum Frequency
80MHz
RAM Size
64 kB
USB Channels
1
ADC Channels
10
Number of SPI Channels
3
Typical Operating Supply Voltage
1.71 → 3.6 V
Timer Resolution
16 bit, 32bit
Height
1.45mm
Width
14.2mm
ADC Resolution
12bit
Number of USART Channels
3
Minimum Operating Temperature
-40 °C
Dimensions
14.2 x 14.2 x 1.45mm
Instruction Set Architecture
RISC
Number of CAN Channels
1
Number of ADC Units
1
Program Memory Type
Flash
Maximum Operating Temperature
+85 °C
Number of UART Channels
1
Length
14.2mm
ADCs
1 (10 x 12 bit)
Number of Timers
2
Number of I2C Channels
3
