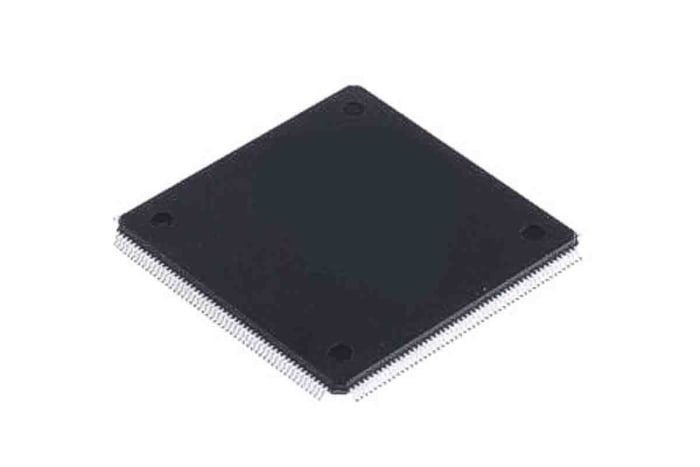

STMicroelectronics STM32F767BIT6, 32bit ARM Cortex M7 Microcontroller, STM32F, 216MHz, 2.048 MB Flash, 176-Pin LQFP
216 in stock in the UK
$ 15.079
Each (In a Tray of 36)
Live stock
216 in stock in the UK
Specifications
Brand
STMicroelectronics
Family Name
STM32F
Package Type
LQFP
Mounting Type
Surface Mount
Pin Count
176
Device Core
ARM Cortex M7
Data Bus Width
32bit
Program Memory Size
2.048 MB
Maximum Frequency
216MHz
RAM Size
512 kB
USB Channels
2
ADC Channels
24
Number of SPI Channels
6
Typical Operating Supply Voltage
1.7 → 3.6 V
Number of UART Channels
4
Length
24.1mm
Number of Ethernet Channels
1
ADCs
3 (24 x 12 bit)
Number of Timers
2
Number of I2C Channels
4
Timer Resolution
16 bit, 32bit
Height
1.45mm
Width
24.1mm
Maximum Number of Ethernet Channels
1
ADC Resolution
12bit
Number of USART Channels
4
Minimum Operating Temperature
-40 °C
Dimensions
24.1 x 24.1 x 1.45mm
Instruction Set Architecture
RISC
Number of CAN Channels
3
Number of ADC Units
3
Program Memory Type
Flash
Maximum Operating Temperature
+85 °C
