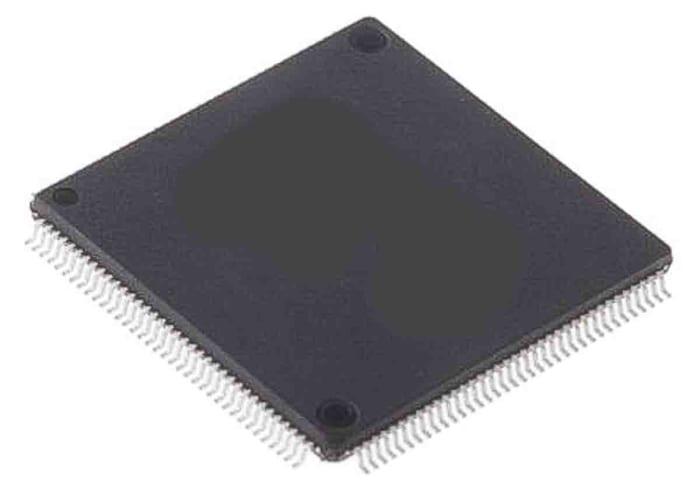

STMicroelectronics STM32F746ZET6, 32bit ARM Cortex M7 Microcontroller, STM32F, 216MHz, 512 kB Flash, 144-Pin LQFP

Brand

STMicroelectronics

Family Name

STM32F

Package Type

LQFP

Mounting Type

Surface Mount

Pin Count

144

Device Core

ARM Cortex M7

Data Bus Width

32bit

Program Memory Size

512 kB

Maximum Frequency

216MHz

RAM Size

320 kB

USB Channels

2

ADC Channels

24

Number of SPI Channels

6

Typical Operating Supply Voltage

1.7 → 3.6 V

Timer Resolution

16 bit, 32bit

Height

1.45mm

Width

20.2mm

Maximum Number of Ethernet Channels

1

ADC Resolution

12bit

Number of USART Channels

4

Minimum Operating Temperature

-40 °C

Dimensions

20.2 x 20.2 x 1.45mm

Instruction Set Architecture

RISC

Number of CAN Channels

2

Maximum Operating Temperature

+85 °C

Number of UART Channels

4

Length

20.2mm

Number of ADC Units

3

Program Memory Type

Flash

Number of Ethernet Channels

1

ADCs

3 (24 x 12 bit)

Number of Timers

2

Number of I2C Channels

4
