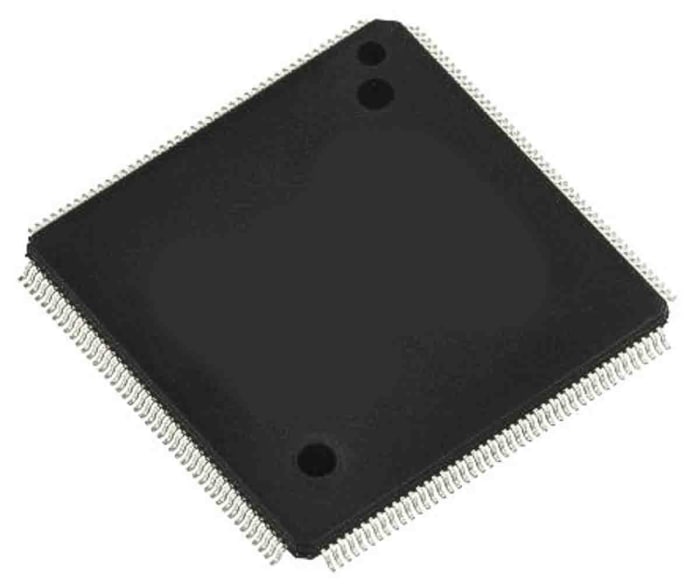

STMicroelectronics STM32F407IGT7, 32bit ARM Cortex M4 Microcontroller, STM32F, 168MHz, 1.024 MB Flash, 176-Pin LQFP

Brand

STMicroelectronics

Family Name

STM32F

Package Type

LQFP

Mounting Type

Surface Mount

Pin Count

176

Device Core

ARM Cortex M4

Data Bus Width

32bit

Program Memory Size

1.024 MB

Maximum Frequency

168MHz

RAM Size

192 kB

USB Channels

2

ADC Channels

24

Number of SPI Channels

3

Typical Operating Supply Voltage

1.8 → 3.6 V

Timer Resolution

16 bit, 32bit

Height

1.45mm

Width

24.1mm

ADC Resolution

12bit

Number of USART Channels

4

Minimum Operating Temperature

-40 °C

Dimensions

24.1 x 24.1 x 1.45mm

Instruction Set Architecture

RISC

Number of CAN Channels

2

Number of ADC Units

3

Program Memory Type

Flash

Maximum Operating Temperature

+105 °C

Number of UART Channels

2

Length

24.1mm

ADCs

3 (24 x 12 bit)

Number of Timers

2

Number of I2C Channels

3
