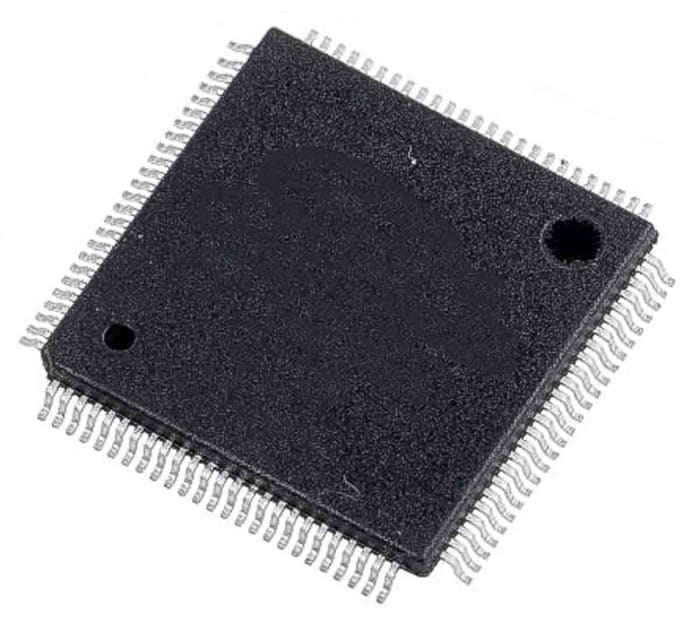

STMicroelectronics STM32F401VET6, 32bit ARM Cortex M4 Microcontroller, STM32F, 84MHz, 512 kB Flash, 100-Pin LQFP

Brand

STMicroelectronics

Family Name

STM32F

Package Type

LQFP

Mounting Type

Surface Mount

Pin Count

100

Device Core

ARM Cortex M4

Data Bus Width

32bit

Program Memory Size

512 kB

Maximum Frequency

84MHz

RAM Size

96 kB

USB Channels

1

ADC Channels

16

Number of SPI Channels

4

Typical Operating Supply Voltage

1.7 → 3.6 V

Height

1.45mm

Width

14.2mm

ADC Resolution

12bit

Number of USART Channels

3

Timers

1 (2 x 32 bit), 1 (6 x 16 bit)

Minimum Operating Temperature

-40 °C

Dimensions

14.2 x 14.2 x 1.45mm

Timer Resolution

16 bit, 32bit

Instruction Set Architecture

RISC

Number of ADC Units

1

Program Memory Type

Flash

Maximum Operating Temperature

+85 °C

Length

14.2mm

ADCs

1 (16 x 12 bit)

Number of Timers

2

Number of I2C Channels

3
