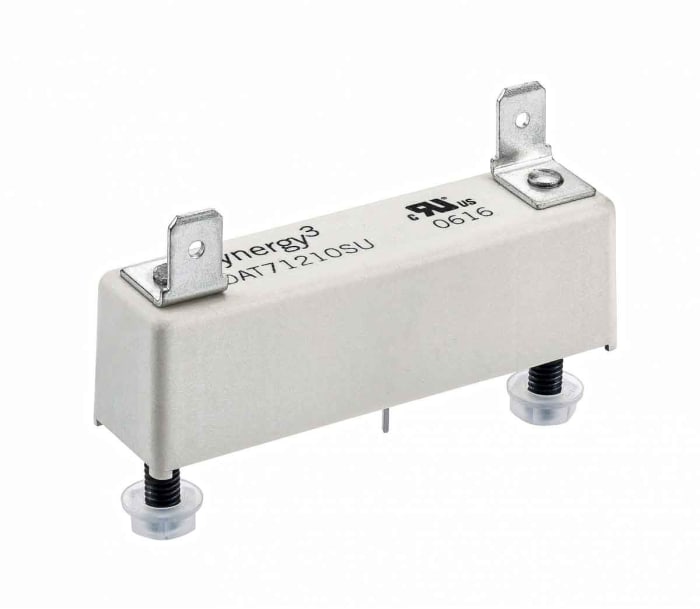

SPST n/c 7.5kV Isolation 24V Coil (Spade
Temporarily out of stock
Back order for despatch on 06/02/2021
$ 530.23
1 Box of 20
Live stock
Temporarily out of stock
Back order for despatch on 06/02/2021
Specifications
Brand
Cynergy3
Coil Voltage
24V dc
Mounting Type
PCB Mount
Maximum Switching Current AC
2 A
Maximum Switching Current DC
2 A
Maximum Switching Voltage AC
7000V
Maximum Switching Voltage DC
7000V
Coil Resistance
925 Ω
Length
60mm
Height
18.5mm
Depth
15.8mm
Dimensions
60 x 15.8 x 18.5mm
Isolation Coil To Contact
17kV
Life
10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles
Electrical Life
10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles
Operating Temperature Range
-20 → +70°C
Operating Time Including Bounce
2ms
Maximum Switching Power DC
50 W
Contact Material
Tungsten
Contact Resistance
250 mΩ
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
+70°C
Special Features
7.5kV or 5kV Isolation, Choice of 10kV, Excellent AC Characteristics, Low Contact Resistance, PCB or Panel Mount
Relay Switching Classification
General Purpose Relay
Number of Poles
1
Country of Origin
GB
