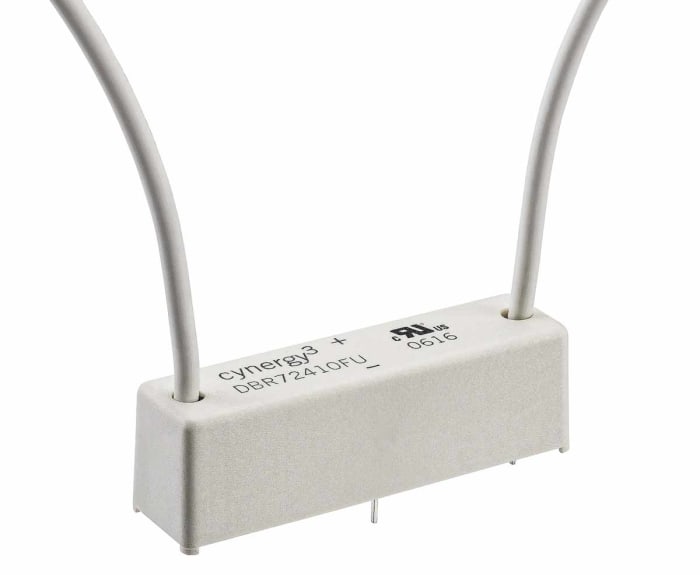

SPST n/o 7.5kV Isolation 12V Coil (Flyin
1 in stock in the UK
$ 453.43
1 Box of 20
Live stock
1 in stock in the UK
Specifications
Brand
Cynergy3
Contact Configuration
SPNO
Coil Voltage
12V dc
Mounting Type
PCB Mount
Maximum Switching Current AC
2 A
Maximum Switching Current DC
2 A
Maximum Switching Voltage AC
7000V
Maximum Switching Voltage DC
7000V
Coil Resistance
150 Ω
Length
60mm
Height
18.5mm
Depth
15.8mm
Dimensions
60 x 15.8 x 18.5mm
Isolation Coil To Contact
17kV
Maximum Switching Power DC
50 W
Contact Material
Tungsten
Contact Resistance
250 mΩ
Special Features
7.5kV or 5kV Isolation, Choice of 10kV, Excellent AC Characteristics, Low Contact Resistance, PCB or Panel Mount
Relay Switching Classification
General Purpose Relay
Number of Poles
1
Electrical Life
10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles
Operating Temperature Range
-20 → +70°C
Operating Time Including Bounce
3ms
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
+70°C
Life
10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles
Country of Origin
GB
