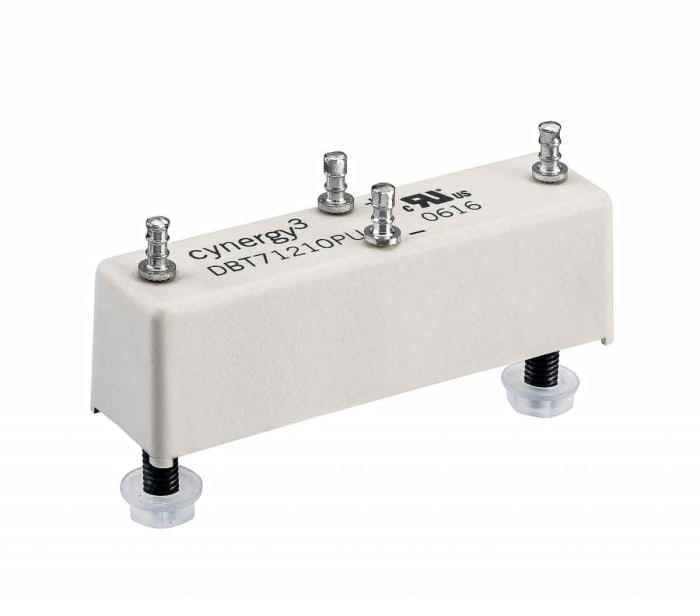

SPST n/o 5kV Isolation 12V Coil (Panel m
Temporarily out of stock
Back order for despatch on 06/02/2021
$ 358.31
1 Box of 20
Live stock
Temporarily out of stock
Back order for despatch on 06/02/2021
Specifications
Brand
Cynergy3
Contact Configuration
SPNO
Coil Voltage
12V dc
Mounting Type
Panel Mount
Maximum Switching Current AC
3 A
Maximum Switching Current DC
3 A
Maximum Switching Voltage AC
1000V
Maximum Switching Voltage DC
1000V
Coil Resistance
150 Ω
Length
60mm
Height
18.5mm
Depth
15.8mm
Dimensions
60 x 15.8 x 18.5mm
Isolation Coil To Contact
17kV
Special Features
7.5kV or 5kV Isolation, Choice of 10kV, Excellent AC Characteristics, Low Contact Resistance, PCB or Panel Mount
Relay Switching Classification
General Purpose Relay
Number of Poles
1
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
+70°C
Life
10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles
Electrical Life
10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles
Operating Temperature Range
-20 → +70°C
Operating Time Including Bounce
3ms
Maximum Switching Power DC
50 W
Terminal Type
Wire Wrap
Contact Material
Rhodium
Contact Resistance
50 mΩ
Country of Origin
GB
