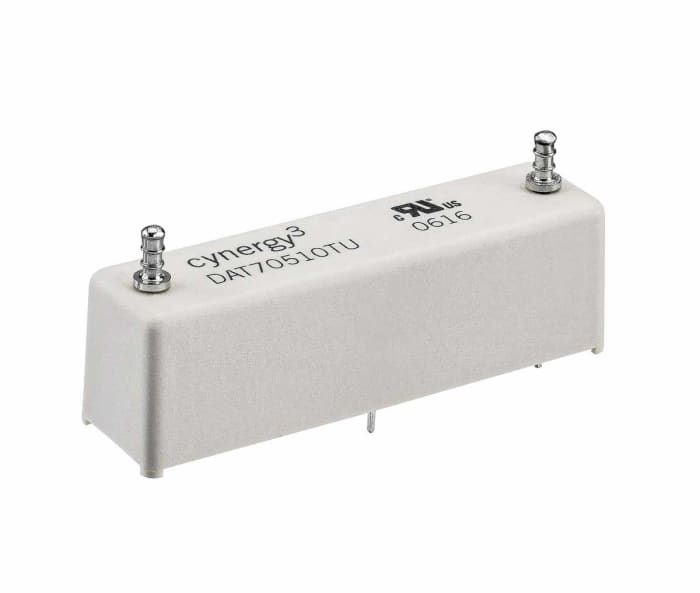

SPST n/o 5kV Isolation 5V Coil (Solder T
1 in stock in the UK
$ 373.38
1 Box of 20
Live stock
1 in stock in the UK
Specifications
Brand
Cynergy3
Contact Configuration
SPNO
Coil Voltage
5V dc
Mounting Type
PCB Mount
Maximum Switching Current AC
2 A
Maximum Switching Current DC
2 A
Maximum Switching Voltage AC
7000V
Maximum Switching Voltage DC
7000V
Coil Resistance
28 Ω
Length
60mm
Height
18.5mm
Depth
15.8mm
Dimensions
60 x 15.8 x 18.5mm
Isolation Coil To Contact
17kV
Electrical Life
10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles
Operating Temperature Range
-20 → +70°C
Operating Time Including Bounce
3ms
Maximum Switching Power DC
50 W
Special Features
7.5kV or 5kV Isolation, Choice of 10kV, Excellent AC Characteristics, Low Contact Resistance, PCB or Panel Mount
Contact Material
Tungsten
Contact Resistance
250 mΩ
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
+70°C
Life
10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles
Relay Switching Classification
General Purpose Relay
Number of Poles
1
Country of Origin
GB
