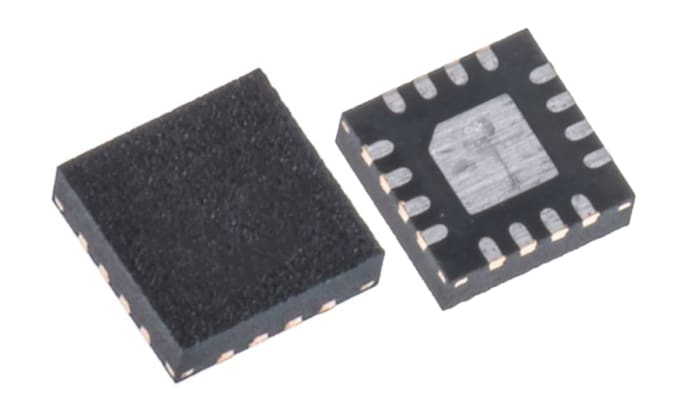

LM2901Q4T STMicroelectronics, Quad Comparator, CMOS/TTL O/P, O/P, 1.3μs 2 → 32 V 16-Pin QFN
RS Stock No. 189-2126
Brand STMicroelectronics
Manufacturers Part No. LM2901Q4T
8975 in stock in the UK
8975 in stock in the UK
$ 0.341
Each (In a Pack of 25)
LM2901Q4T STMicroelectronics, Quad Comparator, CMOS/TTL O/P, O/P, 1.3μs 2 → 32 V 16-Pin QFN
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 25 | $ 0.341 |
| 50 - 75 | $ 0.333 |
| 100 - 225 | $ 0.184 |
| 250 - 975 | $ 0.180 |
| 1000+ | $ 0.140 |
Production pack (Reel)
Live stock
8975 in stock in the UK
Specifications
Brand
STMicroelectronics
Comparator Type
Low Power
Mounting Type
Surface Mount
Package Type
QFN
Power Supply Type
Dual, Single
Output Type
CMOS, DTL, ECL, MOS, TTL
Number of Channels per Chip
4
Typical Response Time
1.3µs
Pin Count
16
Typical Single Supply Voltage
2 → 32 V
Dimensions
3.1 x 3.1 x 0.95mm
Length
3.1mm
Width
3.1mm
Height
0.95mm
Maximum Operating Temperature
+125 °C
Automotive Standard
AEC-Q001, AEC-Q002, AEC-Q003, AEC-Q100
Typical Dual Supply Voltage
±1 to ±16V
Typical Voltage Gain
200 V/mV
Minimum Operating Temperature
-40 °C
