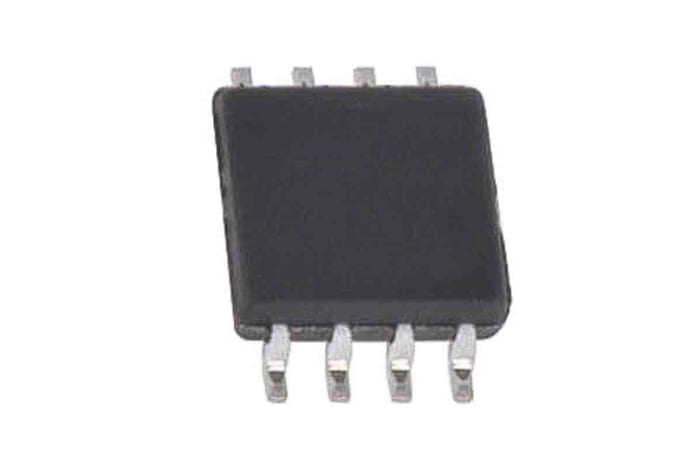

TS922IPT STMicroelectronics, Dual Operational, Op Amp, RRIO, 4MHz 1 kHz, 2.7 → 12 V, 8-Pin TSSOP
3160 in stock in the UK
$ 0.987
Each (In a Pack of 10)
Buy in bulk
| quantity | Unit price |
|---|---|
| 10 - 40 | $ 0.987 |
| 50 - 90 | $ 0.928 |
| 100 - 240 | $ 0.878 |
| 250 - 490 | $ 0.828 |
| 500+ | $ 0.790 |
Production pack (Reel)
Live stock
3160 in stock in the UK
Specifications
Brand
STMicroelectronics
Amplifier Type
Dual Operational
Mounting Type
Surface Mount
Package Type
TSSOP
Power Supply Type
Single
Number of Channels per Chip
2
Pin Count
8
Typical Single Supply Voltage
2.7 → 12 V
Typical Gain Bandwidth Product
4MHz
Output Type
Rail to Rail
Typical Slew Rate
1.3V/µs
Maximum Operating Frequency
1 kHz
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+125 °C
Height
1.05mm
Width
3.1mm
Input Voltage Range
2.7 → 12 V
Typical Voltage Gain
200 V/mV
Input Offset Current
30nA
Dimensions
4.5 x 3.1 x 1.05mm
Output Current
80 mA
Offset Voltage
3mV
Minimum Input Voltage
2.7 V
Typical Input Voltage Noise Density
9nV/√Hz
Rail to Rail
Rail to Rail Input/Output
Length
4.5mm
Maximum Input Voltage
12 V
