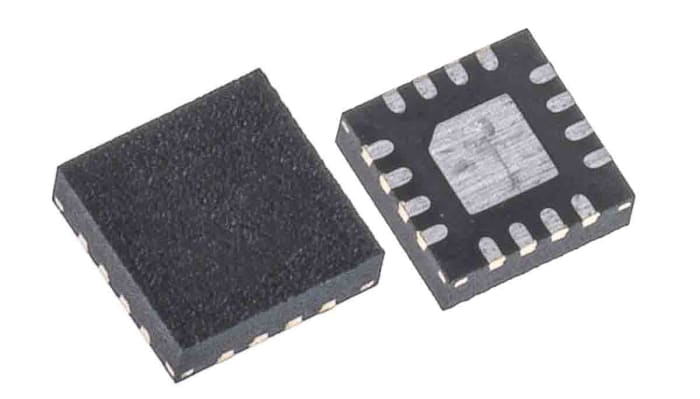

TSV854IQ4T STMicroelectronics, Op Amp, RRO, 1.3MHz 10 kHz, 2.3 → 5.5 V, 16-Pin QFN
2990 in stock in the UK
$ 1.023
Each (In a Pack of 10)
Buy in bulk
| quantity | Unit price |
|---|---|
| 10 - 40 | $ 1.023 |
| 50 - 90 | $ 0.961 |
| 100 - 240 | $ 0.910 |
| 250 - 490 | $ 0.859 |
| 500+ | $ 0.819 |
Production pack (Reel)
Live stock
2990 in stock in the UK
Specifications
Brand
STMicroelectronics
Amplifier Type
General Purpose
Mounting Type
Surface Mount
Package Type
QFN
Power Supply Type
Single
Number of Channels per Chip
4
Pin Count
16
Typical Single Supply Voltage
2.3 → 5.5 V
Typical Gain Bandwidth Product
1.3MHz
Output Type
Rail to Rail, Swing
Typical Slew Rate
0.6V/µs
Maximum Operating Frequency
10 kHz
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+125 °C
Height
0.95mm
Width
3.1mm
Input Voltage Range
2.3 → 5.5 V
Typical Voltage Gain
110 dB
Input Offset Current
50nA
Dimensions
3.1 x 3.1 x 0.95mm
Output Current
43 (Source) mA, 70 (Sink) mA
Offset Voltage
6mV
Minimum Input Voltage
2.3 V
Typical Input Voltage Noise Density
31nV/√Hz
Rail to Rail
Rail to Rail Output
Length
3.1mm
Maximum Input Voltage
5.5 V
