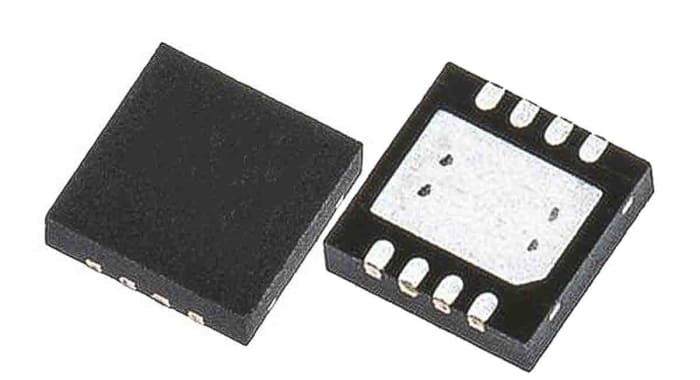

TSV632IQ2T STMicroelectronics, Dual Operational, Op Amp, RRIO, 880kHz 100 kHz, 1.5 → 5.5 V, 8-Pin DFN
2960 in stock in the UK
$ 0.968
Each (In a Pack of 10)
Buy in bulk
| quantity | Unit price |
|---|---|
| 10 - 40 | $ 0.968 |
| 50 - 90 | $ 0.910 |
| 100 - 240 | $ 0.862 |
| 250 - 490 | $ 0.814 |
| 500+ | $ 0.775 |
Production pack (Reel)
Live stock
2960 in stock in the UK
Specifications
Brand
STMicroelectronics
Amplifier Type
Dual Operational
Mounting Type
Surface Mount
Package Type
DFN
Power Supply Type
Single
Number of Channels per Chip
2
Pin Count
8
Typical Single Supply Voltage
1.5 → 5.5 V
Typical Gain Bandwidth Product
880kHz
Output Type
Rail to Rail
Typical Slew Rate
0.34V/µs
Maximum Operating Frequency
100 kHz
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+125 °C
Height
0.55mm
Width
2.15mm
Input Voltage Range
1.5 → 5.5 V
Typical Voltage Gain
95 dB
Input Offset Current
100pA
Dimensions
2.15 x 2.15 x 0.55mm
Output Current
69 (Source) mA, 74 (Sink) mA
Offset Voltage
4.5mV
Minimum Input Voltage
1.5 V
Typical Input Voltage Noise Density
60nV/√Hz
Rail to Rail
Rail to Rail Input/Output
Length
2.15mm
Maximum Input Voltage
5.5 V
