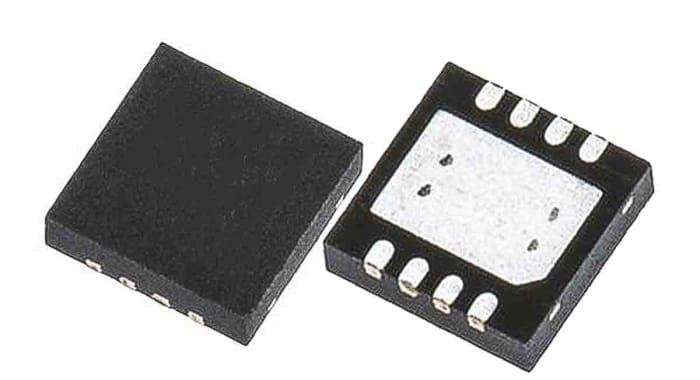

TSV632IQ2T STMicroelectronics, Dual Operational, Op Amp, RRIO, 880kHz 100 kHz, 1.5 → 5.5 V, 8-Pin DFN

Brand

STMicroelectronics

Amplifier Type

Dual Operational

Mounting Type

Surface Mount

Package Type

DFN

Power Supply Type

Single

Number of Channels per Chip

2

Pin Count

8

Typical Single Supply Voltage

1.5 → 5.5 V

Typical Gain Bandwidth Product

880kHz

Output Type

Rail to Rail

Typical Slew Rate

0.34V/µs

Maximum Operating Frequency

100 kHz

Minimum Operating Temperature

-40 °C

Maximum Operating Temperature

+125 °C

Rail to Rail

Rail to Rail Input/Output

Length

2.15mm

Maximum Input Voltage

5.5 V

Height

0.55mm

Width

2.15mm

Input Voltage Range

1.5 → 5.5 V

Typical Voltage Gain

95 dB

Input Offset Current

100pA

Dimensions

2.15 x 2.15 x 0.55mm

Minimum Input Voltage

1.5 V

Typical Input Voltage Noise Density

60nV/√Hz

Output Current

69 (Source) mA, 74 (Sink) mA

Offset Voltage

4.5mV
