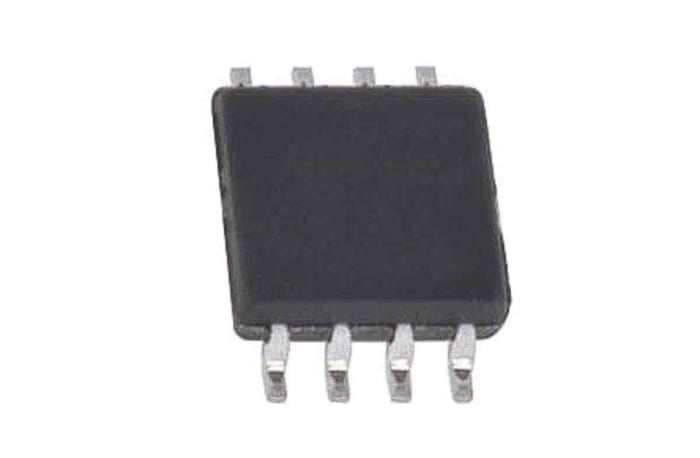

TL082CPT STMicroelectronics, Dual Operational, Op Amp, 4MHz 100 kHz, 6 → 36 V, 8-Pin TSSOP

Brand

STMicroelectronics

Amplifier Type

Dual Operational

Mounting Type

Surface Mount

Package Type

TSSOP

Power Supply Type

Single

Number of Channels per Chip

2

Pin Count

8

Typical Single Supply Voltage

6 → 36 V

Typical Gain Bandwidth Product

4MHz

Output Type

Swing

Typical Slew Rate

16V/µs

Maximum Operating Frequency

100 kHz

Minimum Operating Temperature

0 °C

Maximum Operating Temperature

+70 °C

Output Current

60 mA

Height

1.05mm

Width

3.1mm

Input Voltage Range

6 → 36 V

Typical Voltage Gain

200 V/mV

Input Offset Current

10nA

Dimensions

4.5 x 3.1 x 1.05mm

Minimum Input Voltage

6 V

Typical Input Voltage Noise Density

15nV/√Hz

Length

4.5mm

Maximum Input Voltage

36 V

Offset Voltage

10mV
