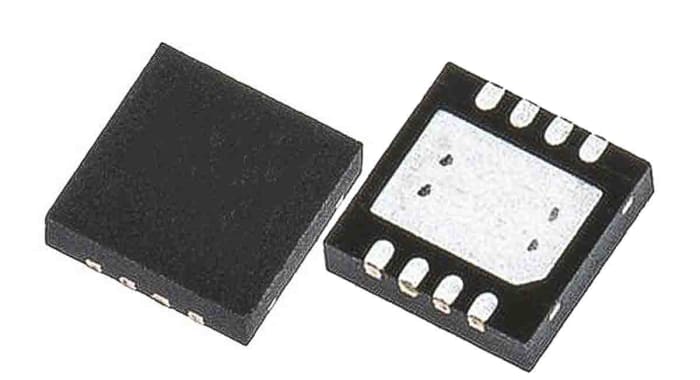

LM258QT STMicroelectronics, Dual Operational, Op Amp, 1.1MHz 100 kHz, 3 → 30 V, 8-Pin DFN
3000 in stock in the UK
$ 0.141
Each (On a Reel of 3000)
Buy in bulk
| quantity | Unit price |
|---|---|
| 3000 - 6000 | $ 0.141 |
| 9000 - 21000 | $ 0.137 |
| 24000+ | $ 0.134 |
Live stock
3000 in stock in the UK
Specifications
Brand
STMicroelectronics
Amplifier Type
Dual Operational
Mounting Type
Surface Mount
Package Type
DFN
Power Supply Type
Single
Number of Channels per Chip
2
Pin Count
8
Typical Single Supply Voltage
3 → 30 V
Typical Gain Bandwidth Product
1.1MHz
Output Type
Swing
Typical Slew Rate
0.6V/µs
Maximum Operating Frequency
100 kHz
Maximum Operating Temperature
+105 °C
Minimum Operating Temperature
-40 °C
Minimum Input Voltage
3 V
Typical Input Voltage Noise Density
55nV/√Hz
Length
2.15mm
Maximum Input Voltage
30 V
Height
0.55mm
Width
2.15mm
Input Voltage Range
3 → 30 V
Typical Voltage Gain
100 dB
Input Offset Current
30nA
Dimensions
2.15 x 2.15 x 0.55mm
Output Current
20 (Sink) mA, 60 (Source) mA
Offset Voltage
5mV
