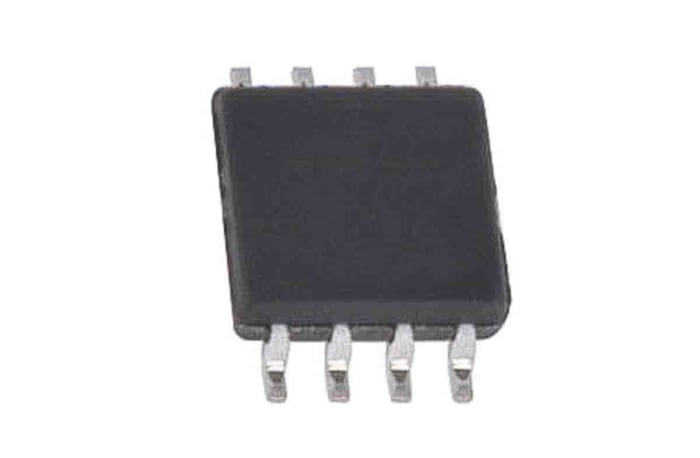

LM258APT STMicroelectronics, Dual Operational, Op Amp, 1.1MHz 100 kHz, 3 → 30 V, 8-Pin TSSOP
Temporarily out of stock
Back order for despatch on 07/20/2021
$ 0.208
Each (On a Reel of 4000)
Buy in bulk
| quantity | Unit price |
|---|---|
| 4000 - 4000 | $ 0.208 |
| 8000 - 20000 | $ 0.193 |
| 24000+ | $ 0.188 |
Live stock
Temporarily out of stock
Back order for despatch on 07/20/2021
Specifications
Brand
STMicroelectronics
Amplifier Type
Dual Operational
Mounting Type
Surface Mount
Package Type
TSSOP
Power Supply Type
Single
Number of Channels per Chip
2
Pin Count
8
Typical Single Supply Voltage
3 → 30 V
Typical Gain Bandwidth Product
1.1MHz
Output Type
Swing
Typical Slew Rate
0.6V/µs
Maximum Operating Frequency
100 kHz
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+105 °C
Height
1.05mm
Width
3.1mm
Input Voltage Range
3 → 30 V
Typical Voltage Gain
100 dB
Input Offset Current
10nA
Dimensions
4.5 x 3.1 x 1.05mm
Output Current
20 (Sink) mA, 60 (Source) mA
Offset Voltage
3mV
Minimum Input Voltage
3 V
Typical Input Voltage Noise Density
55nV/√Hz
Length
4.5mm
Maximum Input Voltage
30 V
