Peltier Module, 9.9W, 2.1A, 8.2V dc, 24.56 x 12.29mm
RS Stock No. 189-1582
Brand Laird Technologies
Manufacturers Part No. CP0.8-63-06L
22 in stock in the UK
22 in stock in the UK
$ 20.46
Each
Peltier Module, 9.9W, 2.1A, 8.2V dc, 24.56 x 12.29mm
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 4 | $ 20.46 |
| 5 - 9 | $ 70.05 |
| 10 - 24 | $ 67.85 |
| 25 - 99 | $ 64.89 |
| 100+ | $ 57.52 |
Live stock
22 in stock in the UK
Product details

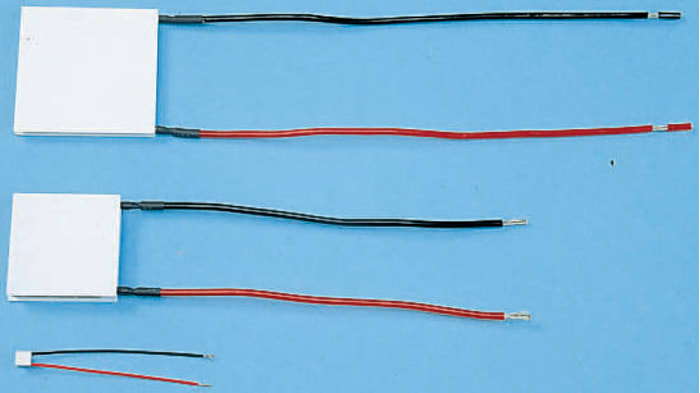

Thermoelectric Modules, Laird Technologies
From Global Component Sourcing, these heat pumps utilise the Peltier Effect to remove heat from the application. They are particularly suited for use within applications where space or access is limited. Peltier effect heat pumps are also highly cost effective when compared to conventional cooling solutions.
Thermoelectric Modules - Peltier Effect
Specifications
Brand
Laird Technologies
Maximum Cooling Capacity
9.9W
Maximum Temperature Difference
+75°C
Maximum Current
2.1A
Maximum Voltage
8.2V dc
Active Area
24.56 x 12.29mm
Active Area Length
24.56mm
Active Area Thickness
3.4mm
Active Area Width
12.29mm
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
