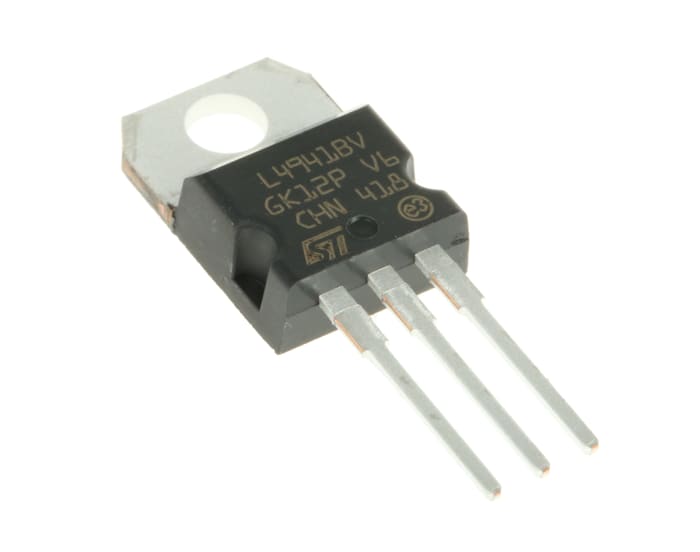

STMicroelectronics L4941BV, LDO Regulator, 1A, 5 V, ±4% 3-Pin, TO-220
RS Stock No. 189-1374
Brand STMicroelectronics
Manufacturers Part No. L4941BV
49 in stock in the UK
49 in stock in the UK
$ 1.09
Each
STMicroelectronics L4941BV, LDO Regulator, 1A, 5 V, ±4% 3-Pin, TO-220
Production pack (Tube)
Live stock
49 in stock in the UK
Product details
LDO (Low Dropout) Linear Voltage Regulators, STMicroelectronics, 800mA to 1A
LDO (Low Dropout) Linear Voltage Regulators, STMicroelectronics
Specifications
Brand
STMicroelectronics
Maximum Output Current
1A
Regulator Type
Low Dropout Voltage
Number of Outputs
1
Line Regulation
20 mV
Load Regulation
20 mV
Accuracy
±4%
Mounting Type
Through Hole
Polarity
Positive
Quiescent Current
4mA
Package Type
TO-220
Pin Count
3
Output Type
Fixed
Dimensions
10.4 x 4.6 x 9.15mm
Height
9.15mm
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+150 °C
Length
10.4mm
Maximum Input Voltage
16 V
Width
4.6mm
