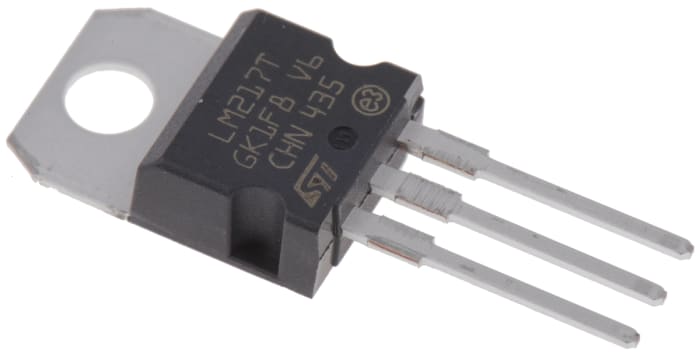

STMicroelectronics, 1.2 → 37 V Linear Voltage Regulator, 1.5A, 1-Channel, Adjustable 3-Pin, TO-220 LM217T
Temporarily out of stock
Back order for despatch on 06/18/2021
$ 0.79
Each
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 19 | $ 0.79 |
| 20 - 49 | $ 0.66 |
| 50 - 99 | $ 0.62 |
| 100 - 249 | $ 0.59 |
| 250+ | $ 0.55 |
Production pack (Tube)
Live stock
Temporarily out of stock
Back order for despatch on 06/18/2021
Product details
LM217/LM317 Linear Voltage Regulator, STMicroelectronics
The STMicroelectronics LM217, LM317 Positive linear voltage regulator are robust as they feature internal current limiting and thermal shutdown. The adjustable voltage regulator is supplied in various packages from TO220, TO220FP and D2PAK devices. This series offers 1.5 Amps of load current with an output range of 1.2 V to 37 V by using the resistive divider.
Linear Voltage Regulators, STMicroelectronics
Specifications
Brand
STMicroelectronics
Maximum Output Current
1.5A
Regulator Type
Linear Voltage
Number of Outputs
1
Line Regulation
0.02 %/V
Load Regulation
0.3 %
Mounting Type
Through Hole
Polarity
Positive
Package Type
TO-220
Reference Voltage
1.3V
Pin Count
3
Output Type
Adjustable
Dimensions
10.4 x 4.6 x 9.15mm
Height
9.15mm
Minimum Operating Temperature
-25 °C
Maximum Operating Temperature
+150 °C
Length
10.4mm
Width
4.6mm
