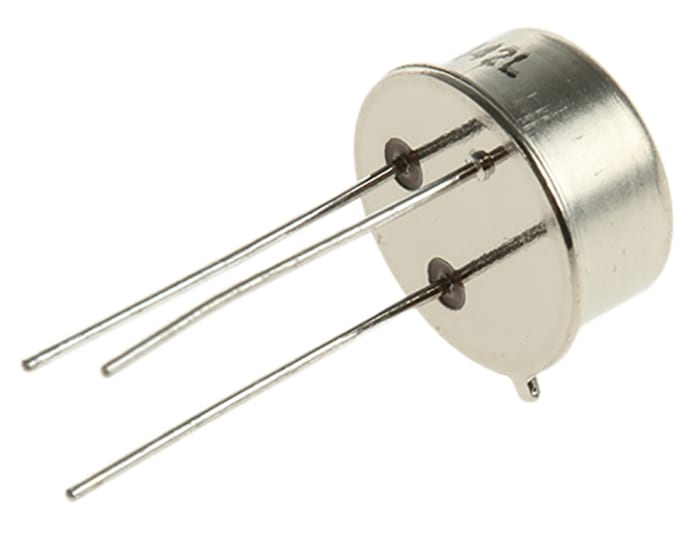

N-Channel MOSFET, 8 A, 100 V, 3-Pin TO-39 Magnatec 2N6796
RS Stock No. 189-0646
Brand Magnatec
Manufacturers Part No. 2N6796
Permanently discontinued
Permanently discontinued
P.O.A
N-Channel MOSFET, 8 A, 100 V, 3-Pin TO-39 Magnatec 2N6796
Production pack (Bag)
Live stock
Permanently discontinued
Product details
N-Channel MOSFET Transistors, Semelab
MOSFET Transistors, Semelab
Specifications
Brand
Magnatec
Channel Type
N
Maximum Continuous Drain Current
8 A
Maximum Drain Source Voltage
100 V
Package Type
TO-39
Mounting Type
Through Hole
Pin Count
3
Maximum Drain Source Resistance
180 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
4V
Maximum Power Dissipation
25 W
Transistor Configuration
Single
Maximum Gate Source Voltage
-20 V, +20 V
Number of Elements per Chip
1
Minimum Operating Temperature
-55 °C
Height
4.57mm
Maximum Operating Temperature
+150 °C
Length
9.4mm
Width
9.4mm
Transistor Material
Si
Country of Origin
GB
