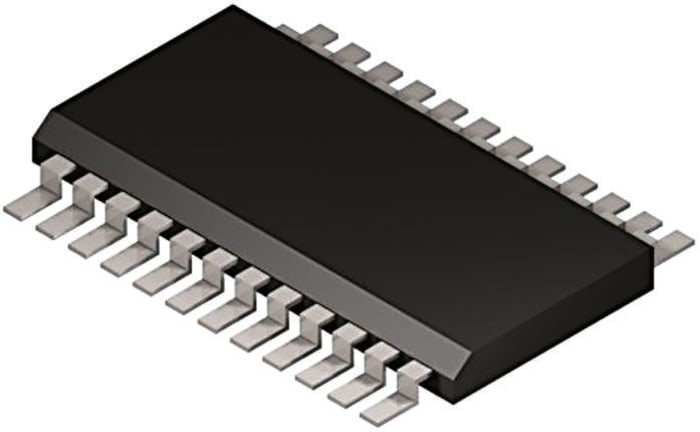

STMicroelectronics ALED1642GWXTTR, LED Display Driver, 3 → 5.5 V, 24-Pin TSSOP
RS Stock No. 188-9302
Brand STMicroelectronics
Manufacturers Part No. ALED1642GWXTTR
Temporarily out of stock
Temporarily out of stock
$ 2.12
Each
STMicroelectronics ALED1642GWXTTR, LED Display Driver, 3 → 5.5 V, 24-Pin TSSOP
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 9 | $ 2.12 |
| 10 - 19 | $ 1.80 |
| 20 - 49 | $ 1.45 |
| 50 - 199 | $ 1.42 |
| 200+ | $ 1.03 |
Production pack (Reel)
Live stock
Temporarily out of stock
Specifications
Brand
STMicroelectronics
Current Accuracy
±3 (Channel to Channel) %, ±4 (Channel to Channel) %
Maximum Supply Current
10 (On) mA, 6 (Off) mA
Mounting Type
Surface Mount
Package Type
TSSOP
Pin Count
24
Typical Operating Supply Voltage
3 → 5.5 V
Dimensions
7.9 x 4.5 x 1.05mm
Height
1.05mm
Length
7.9mm
Maximum Operating Temperature
+150 °C
Minimum Operating Temperature
-40 °C
Width
4.5mm
Maximum Frequency
30MHz
Output Voltage
19 V
Automotive Standard
AEC-Q100
