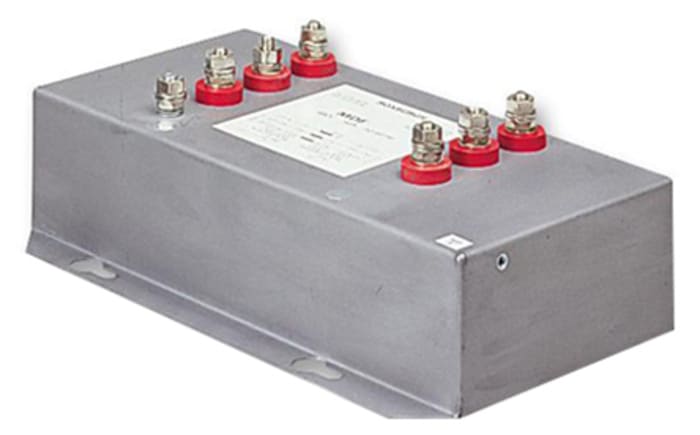

Roxburgh EMC, MDF 50A 480 V ac 60Hz, Flange Mount RFI Filter, Stud, Single Phase
RS Stock No. 188-9292
Brand Roxburgh EMC
Manufacturers Part No. MDF350
2 in stock in the UK
2 in stock in the UK
$ 288.20
Each
Roxburgh EMC, MDF 50A 480 V ac 60Hz, Flange Mount RFI Filter, Stud, Single Phase
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 9 | $ 288.20 |
| 10 - 24 | $ 244.86 |
| 25 - 49 | $ 220.35 |
| 50 - 99 | $ 198.32 |
| 100+ | $ 178.48 |
Live stock
2 in stock in the UK
Product details
IHF/MDF Series
Industrial - Three Phase
Specifications
Brand
Roxburgh EMC
Maximum Current Rating
50A
Maximum Voltage Rating
480 V ac
Mounting Type
Flange Mount
Termination Style
Stud
Number of Phases
1
Series
MDF
Operating Frequency
60Hz
Length
230mm
Depth
147mm
Capacitance
2.2µF
Height
55mm
Inductance
550 μH
Dimensions
230 x 147 x 55mm
Minimum Operating Temperature
-25°C
Leakage Current
14.5 mA
Maximum Operating Temperature
+85°C
Resistance
1.8MΩ
Standards Met
UL 1283
Power Loss
4.5W
Country of Origin
GB
