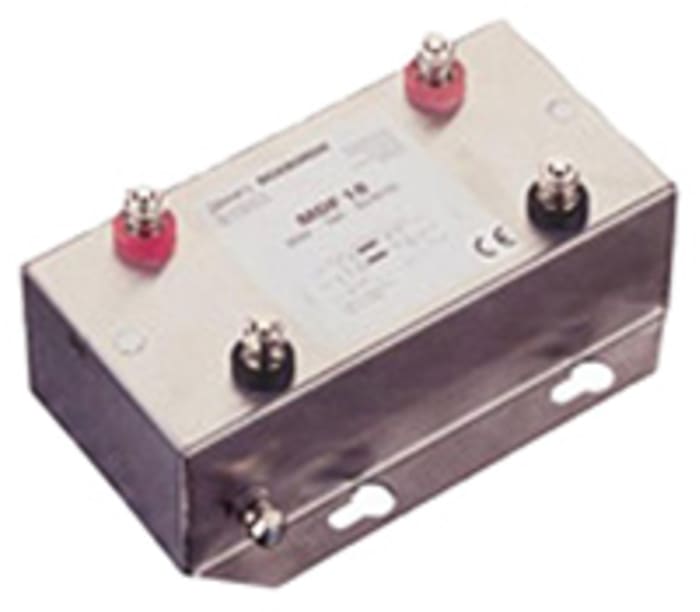

Roxburgh EMC, MDF 36A 250 V ac 60Hz, Flange Mount RFI Filter, Stud, Single Phase
RS Stock No. 188-9236
Brand Roxburgh EMC
Manufacturers Part No. MDF36
Permanently discontinued
Permanently discontinued
P.O.A
Roxburgh EMC, MDF 36A 250 V ac 60Hz, Flange Mount RFI Filter, Stud, Single Phase
Live stock
Permanently discontinued
Specifications
Brand
Roxburgh EMC
Maximum Current Rating
36A
Maximum Voltage Rating
250 V ac
Mounting Type
Flange Mount
Termination Style
Stud
Number of Phases
1
Series
MDF
Operating Frequency
60Hz
Length
174mm
Depth
120mm
Height
55mm
Dimensions
174 x 120 x 55mm
Minimum Operating Temperature
-25°C
Leakage Current
110 mA
Maximum Operating Temperature
+85°C
Resistance
3.8mΩ
Standards Met
UL 1283
Power Loss
5W
Country of Origin
GB
