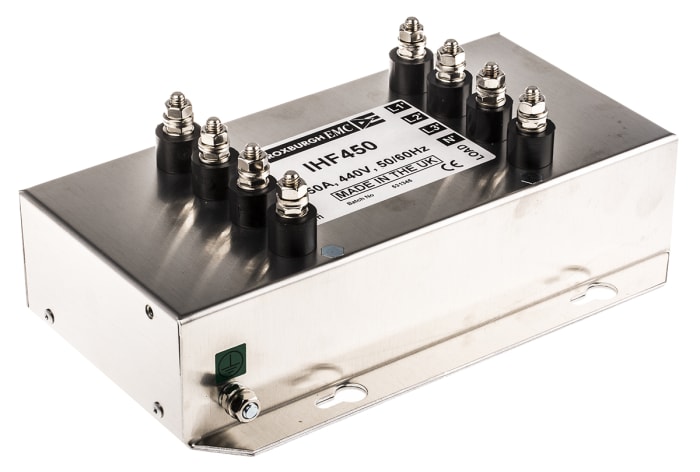

Roxburgh EMC, IHF 50A 480 V ac 60Hz, Flange Mount RFI Filter, Stud, Single Phase
RS Stock No. 188-9185
Brand Roxburgh EMC
Manufacturers Part No. IHF450
17 in stock in the UK
17 in stock in the UK
$ 168.52
Each
Roxburgh EMC, IHF 50A 480 V ac 60Hz, Flange Mount RFI Filter, Stud, Single Phase
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 4 | $ 168.52 |
| 5 - 9 | $ 165.12 |
| 10+ | $ 155.06 |
Live stock
17 in stock in the UK
Product details
IHF/MDF Series
Industrial - Three Phase
Specifications
Brand
Roxburgh EMC
Maximum Current Rating
50A
Maximum Voltage Rating
480 V ac
Mounting Type
Flange Mount
Termination Style
Stud
Number of Phases
1
Series
IHF
Operating Frequency
60Hz
Length
230mm
Depth
147mm
Capacitance
2.2µF
Height
55mm
Inductance
280 μH
Dimensions
230 x 147 x 55mm
Minimum Operating Temperature
-25°C
Leakage Current
3.5 mA
Maximum Operating Temperature
+85°C
Resistance
1MΩ
Standards Met
EN 60939
Power Loss
2.5W
Country of Origin
GB
