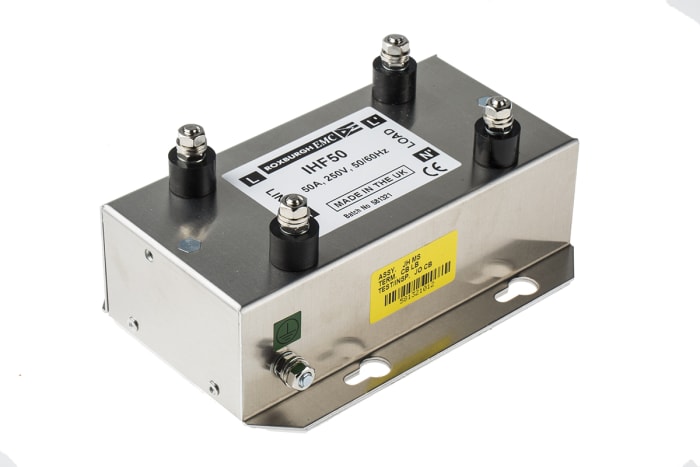

Roxburgh EMC, IHF 50A 250 V ac/dc 60Hz, Flange Mount RFI Filter
RS Stock No. 188-9157
Brand Roxburgh EMC
Manufacturers Part No. IHF50
35 in stock in the UK
35 in stock in the UK
$ 172.13
Each
Roxburgh EMC, IHF 50A 250 V ac/dc 60Hz, Flange Mount RFI Filter
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 9 | $ 172.13 |
| 10 - 24 | $ 166.01 |
| 25 - 49 | $ 149.42 |
| 50 - 99 | $ 134.47 |
| 100+ | $ 120.99 |
Live stock
35 in stock in the UK
Product details
Roxburgh IHF Series
Roxburgh IHF series single phase filters offer medium performance and low leakage. Suitable for a wide range of industrial motor applications.
Industrial - Single Phase
Specifications
Brand
Roxburgh EMC
Maximum Current Rating
50A
Maximum Voltage Rating
250 V ac/dc
Mounting Type
Flange Mount
Series
IHF
Operating Frequency
60Hz
Length
174mm
Depth
120mm
Capacitance
2200µF
Height
55mm
Inductance
1.1 mH
Dimensions
174 x 120 x 55mm
Minimum Operating Temperature
-25°C
Leakage Current
2.1 mA
Maximum Operating Temperature
+85°C
Resistance
2MΩ
Standards Met
EN 60939
Power Loss
5W
Country of Origin
GB
