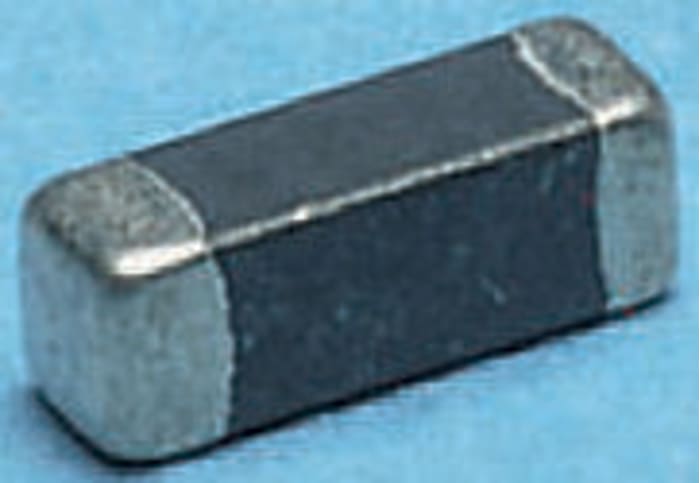

Murata Ferrite Bead (Chip Ferrite Bead), 4.5 x 1.6 x 1.6mm (1806 (4516M)), 75Ω impedance at 100 MHz
340 in stock in the UK
$ 0.301
Each (In a Pack of 10)
Buy in bulk
| quantity | Unit price |
|---|---|
| 10 - 40 | $ 0.301 |
| 50 - 90 | $ 0.255 |
| 100 - 490 | $ 0.226 |
| 500 - 1990 | $ 0.196 |
| 2000+ | $ 0.180 |
Production pack (Reel)
Live stock
340 in stock in the UK
Product details
SMD 1806 Ferrite Filters- BLM41P Series
BLM series ferrite beads from Murata do not require a ground connection and are ideal for use in circuits with unstable ground lines. The nickel barrier construction of the external electrodes provides excellent resistance to solder heat. These ferrite beads are designed to function nearly as resistors at noise frequencies, leaving signal wave forms undistorted and reducing the possibility of resonance.
Beads - Surface Mount
Specifications
Brand
Murata
Package Type
1806 (4516M)
Impedance at 100 MHz
75Ω
Current Rating
3.5A
Type
Chip Ferrite Bead
Dimensions
4.5 x 1.6 x 1.6mm
Length
4.5mm
Depth
1.6mm
Height
1.6mm
Material
Ferrite
Series
BLM41PG
Maximum DC Resistance
10mΩ
Application
Power Supplies
