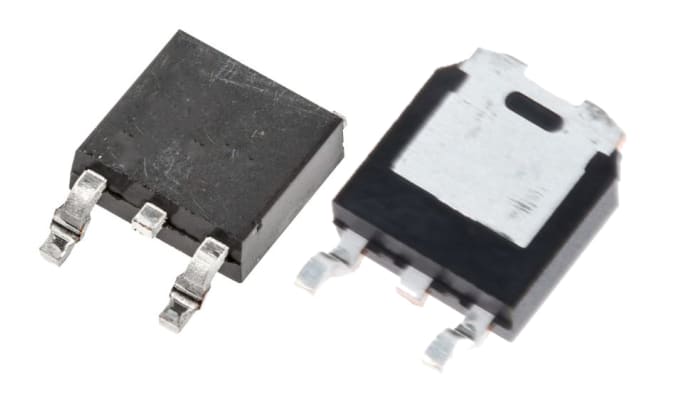

N-Channel MOSFET, 10 A, 3-Pin DPAK STMicroelectronics STD11N60DM2
RS Stock No. 188-8550
Brand STMicroelectronics
Manufacturers Part No. STD11N60DM2
2480 in stock in the UK
2480 in stock in the UK
$ 1.410
Each (In a Pack of 5)
N-Channel MOSFET, 10 A, 3-Pin DPAK STMicroelectronics STD11N60DM2
Buy in bulk
| quantity | Unit price |
|---|---|
| 5 - 20 | $ 1.410 |
| 25 - 45 | $ 1.327 |
| 50 - 120 | $ 1.254 |
| 125 - 245 | $ 1.184 |
| 250+ | $ 1.128 |
Production pack (Reel)
Live stock
2480 in stock in the UK
Specifications
Brand
STMicroelectronics
Channel Type
N
Maximum Continuous Drain Current
10 A
Package Type
DPAK
Mounting Type
Surface Mount
Pin Count
3
Maximum Drain Source Resistance
420 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
5V
Minimum Gate Threshold Voltage
4V
Maximum Power Dissipation
110 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±25 V
Number of Elements per Chip
1
Height
2.17mm
Width
6.2mm
Minimum Operating Temperature
-55 °C
Forward Diode Voltage
1.6V
Maximum Operating Temperature
+150 °C
Length
6.6mm
Typical Gate Charge @ Vgs
16.5 nC @ 10 V
