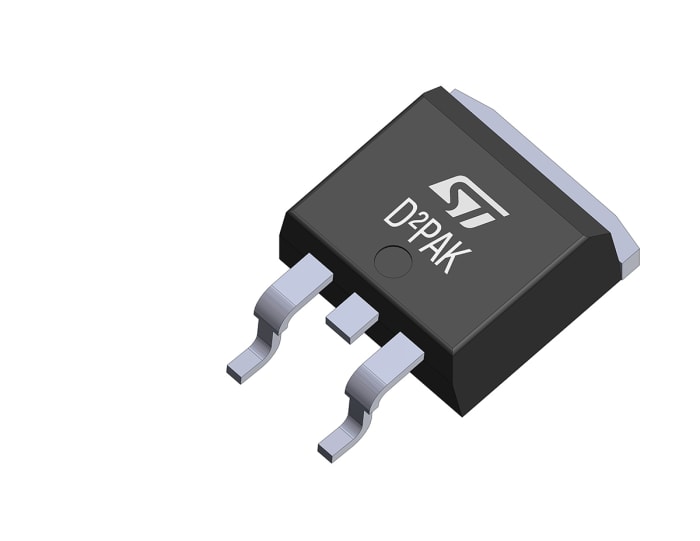

N-Channel MOSFET, 80 A, 55 V, 3-Pin D2PAK STMicroelectronics STB80NF55-06T4
Temporarily out of stock
$ 2.914
Each (In a Pack of 5)
Buy in bulk
| quantity | Unit price |
|---|---|
| 5 - 20 | $ 2.914 |
| 25 - 45 | $ 2.739 |
| 50 - 120 | $ 2.594 |
| 125 - 245 | $ 2.446 |
| 250+ | $ 2.331 |
Production pack (Reel)
Live stock
Temporarily out of stock
Specifications
Brand
STMicroelectronics
Channel Type
N
Maximum Continuous Drain Current
80 A
Maximum Drain Source Voltage
55 V
Package Type
D2PAK
Mounting Type
Surface Mount
Pin Count
3
Maximum Drain Source Resistance
6.5 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
4V
Minimum Gate Threshold Voltage
2V
Maximum Power Dissipation
300 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±20 V
Number of Elements per Chip
1
Height
4.37mm
Width
9.35mm
Minimum Operating Temperature
-55 °C
Forward Diode Voltage
1.5V
Maximum Operating Temperature
+175 °C
Typical Gate Charge @ Vgs
142 nC @ 10 V
Length
10.4mm
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
