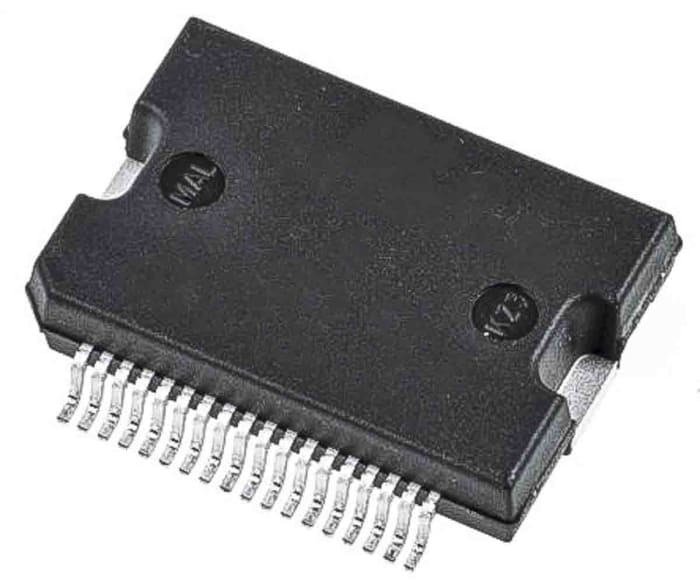

STMicroelectronics L6470PDTR, Stepper Motor Stepper Motor Driver 36-Pin, SOIC
RS Stock No. 188-8503
Brand STMicroelectronics
Manufacturers Part No. L6470PDTR
112 in stock in the UK
112 in stock in the UK
$ 8.009
Each (In a Pack of 2)
STMicroelectronics L6470PDTR, Stepper Motor Stepper Motor Driver 36-Pin, SOIC
Buy in bulk
| quantity | Unit price |
|---|---|
| 2 - 8 | $ 8.009 |
| 10 - 18 | $ 7.526 |
| 20 - 48 | $ 7.130 |
| 50 - 98 | $ 6.727 |
| 100+ | $ 6.405 |
Production pack (Reel)
Live stock
112 in stock in the UK
Specifications
Brand
STMicroelectronics
Motor Type
Stepper Motor
Output Configuration
Bipolar
Configuration
Full Bridge
Maximum Output Current
3 (RMS A, 7 (Pulsed) A
Maximum Supply Voltage
45 V
Mounting Type
Surface Mount
Package Type
SO
Maximum Operating Supply Voltage
45 V
Pin Count
36
Minimum Operating Supply Voltage
8 V
Typical Switching Frequency
800kHz
Height
1.05mm
Width
4.5mm
Product Height
1.05mm
Maximum Operating Temperature
+150 °C
Length
9.8mm
Product Length
9.8mm
Product Width
4.5mm
Minimum Operating Temperature
-40 °C
Dimensions
9.8 x 4.5 x 1.05mm
