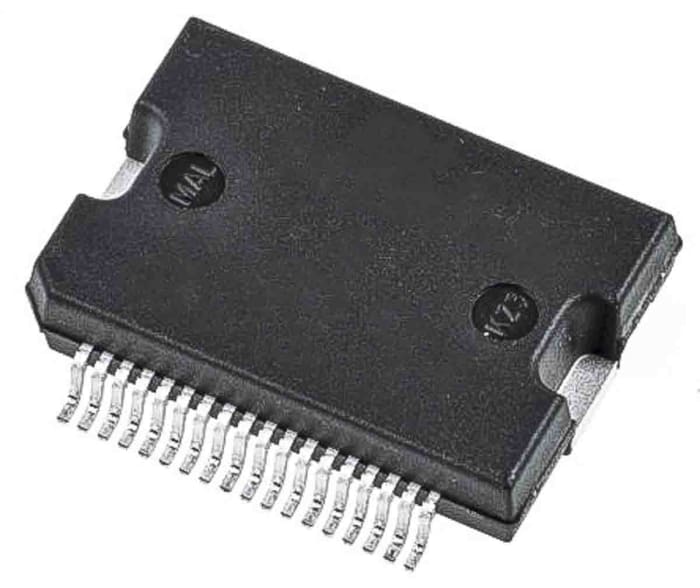

STMicroelectronics L6228PDTR, Stepper Motor Stepper Motor Driver 36-Pin, SOIC
RS Stock No. 188-8482
Brand STMicroelectronics
Manufacturers Part No. L6228PDTR
Temporarily out of stock
Temporarily out of stock
$ 6.700
Each (In a Pack of 2)
STMicroelectronics L6228PDTR, Stepper Motor Stepper Motor Driver 36-Pin, SOIC
Buy in bulk
| quantity | Unit price |
|---|---|
| 2 - 8 | $ 6.700 |
| 10 - 18 | $ 6.297 |
| 20 - 48 | $ 5.962 |
| 50 - 98 | $ 5.626 |
| 100+ | $ 5.357 |
Production pack (Reel)
Live stock
Temporarily out of stock
Specifications
Brand
STMicroelectronics
Motor Type
Stepper Motor
Output Configuration
Bipolar
Configuration
Full Bridge
Maximum Output Current
1.4 (RMS)A
Maximum Supply Voltage
52 V
Mounting Type
Surface Mount
Package Type
SO
Pin Count
36
Maximum Operating Supply Voltage
52 V
Minimum Operating Supply Voltage
8 V
Typical Switching Frequency
100 (Maximum)kHz
Height
3.3mm
Width
11.1mm
Product Height
3.3mm
Minimum Operating Temperature
-40 °C
Dimensions
16 x 11.1 x 3.3mm
Product Width
11.1mm
Maximum Operating Temperature
+150 °C
Length
16mm
Product Length
16mm
