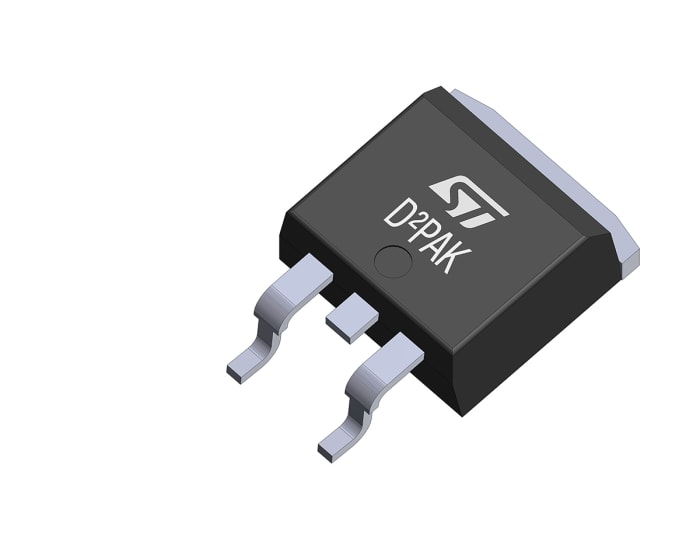

N-Channel MOSFET, 12 A, 3-Pin D2PAK STMicroelectronics STB12NM50T4
RS Stock No. 188-8473
Brand STMicroelectronics
Manufacturers Part No. STB12NM50T4
950 in stock in the UK
950 in stock in the UK
$ 3.690
Each (In a Pack of 5)
N-Channel MOSFET, 12 A, 3-Pin D2PAK STMicroelectronics STB12NM50T4
Buy in bulk
| quantity | Unit price |
|---|---|
| 5 - 20 | $ 3.690 |
| 25 - 45 | $ 3.470 |
| 50 - 120 | $ 3.284 |
| 125 - 245 | $ 3.099 |
| 250+ | $ 2.951 |
Production pack (Reel)
Live stock
950 in stock in the UK
Specifications
Brand
STMicroelectronics
Channel Type
N
Maximum Continuous Drain Current
12 A
Package Type
D2PAK
Mounting Type
Surface Mount
Pin Count
3
Maximum Drain Source Resistance
350 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
5V
Minimum Gate Threshold Voltage
3V
Maximum Power Dissipation
160 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±30 V
Number of Elements per Chip
1
Height
4.37mm
Width
9.35mm
Forward Diode Voltage
1.5V
Maximum Operating Temperature
+150 °C
Length
10.4mm
Typical Gate Charge @ Vgs
28 nC @ 10 V
Minimum Operating Temperature
-65 °C
