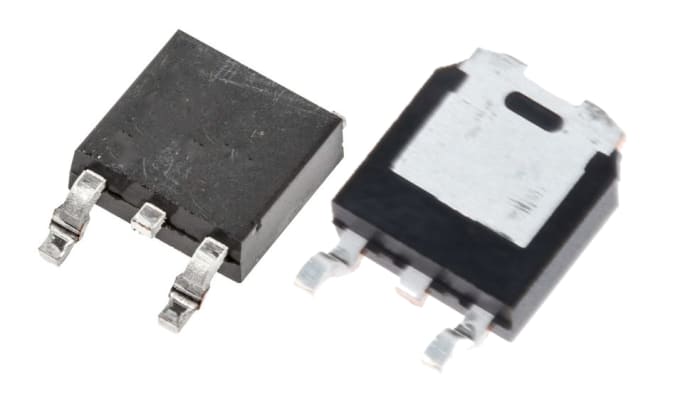

N-Channel MOSFET, 5 A, 3-Pin IPAK STMicroelectronics STD5NM60T4
RS Stock No. 188-8455
Brand STMicroelectronics
Manufacturers Part No. STD5NM60T4
Temporarily out of stock
Temporarily out of stock
$ 2.054
Each (In a Pack of 5)
N-Channel MOSFET, 5 A, 3-Pin IPAK STMicroelectronics STD5NM60T4
Buy in bulk
| quantity | Unit price |
|---|---|
| 5 - 20 | $ 2.054 |
| 25 - 45 | $ 1.931 |
| 50 - 120 | $ 1.829 |
| 125 - 245 | $ 1.727 |
| 250+ | $ 1.643 |
Production pack (Reel)
Live stock
Temporarily out of stock
Specifications
Brand
STMicroelectronics
Channel Type
N
Maximum Continuous Drain Current
5 A
Package Type
IPAK
Mounting Type
Through Hole
Pin Count
3
Maximum Drain Source Resistance
1 Ω
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
5V
Minimum Gate Threshold Voltage
4V
Maximum Power Dissipation
96 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±30 V
Number of Elements per Chip
1
Typical Gate Charge @ Vgs
13 nC @ 10 V
Forward Diode Voltage
1.5V
Maximum Operating Temperature
+150 °C
Length
6.6mm
Height
6.2mm
Width
2.4mm
Minimum Operating Temperature
-55 °C
