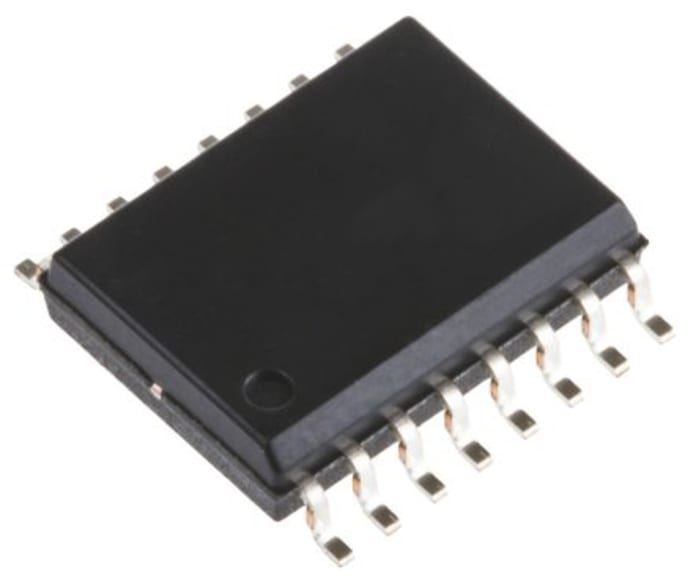

STMicroelectronics SG3525AP013TR, PWM Controller, 35 V, 400 kHz 16-Pin, SO
RS Stock No. 188-8443
Brand STMicroelectronics
Manufacturers Part No. SG3525AP013TR
Temporarily out of stock
Back order for despatch on 07/15/2021
Temporarily out of stock
$ 1.571
Each (In a Pack of 5)
STMicroelectronics SG3525AP013TR, PWM Controller, 35 V, 400 kHz 16-Pin, SO
Buy in bulk
| quantity | Unit price |
|---|---|
| 5 - 20 | $ 1.571 |
| 25 - 45 | $ 1.477 |
| 50 - 120 | $ 1.399 |
| 125 - 245 | $ 1.319 |
| 250+ | $ 1.257 |
Production pack (Reel)
Live stock
Temporarily out of stock
Back order for despatch on 07/15/2021
Specifications
Brand
STMicroelectronics
Maximum Switching Frequency
400 kHz
Output Voltage
5.2 V
Output Current
500 mA
Number of Outputs
1
Mounting Type
Surface Mount
Fall Time
300ns
Rise Time
600ns
Package Type
SO
Pin Count
16
Topology
Push-Pull
Maximum Duty Cycle
49%
Dimensions
10 x 4 x 1.6mm
Length
10mm
PWM Controller Type
Voltage Mode
Width
4mm
Height
1.6mm
Minimum Operating Temperature
0 °C
Minimum Operating Supply Voltage
8 V
Maximum Operating Temperature
+70 °C
Maximum Operating Supply Voltage
35 V
