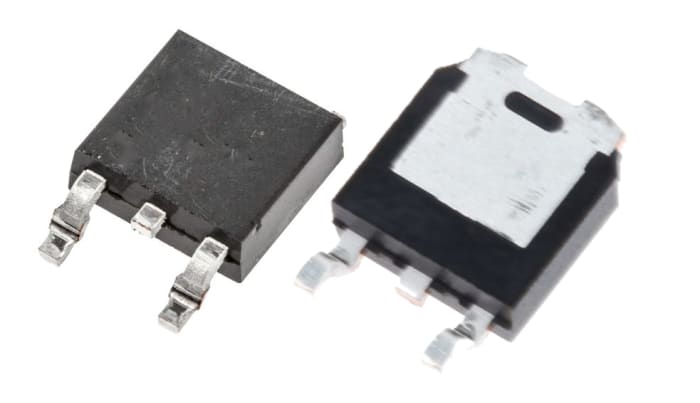

N-Channel MOSFET, 4 A, 3-Pin DPAK STMicroelectronics STD5N80K5
RS Stock No. 188-8440
Brand STMicroelectronics
Manufacturers Part No. STD5N80K5
2470 in stock in the UK
2470 in stock in the UK
$ 1.156
Each (In a Pack of 10)
N-Channel MOSFET, 4 A, 3-Pin DPAK STMicroelectronics STD5N80K5
Buy in bulk
| quantity | Unit price |
|---|---|
| 10 - 40 | $ 1.156 |
| 50 - 90 | $ 1.086 |
| 100 - 240 | $ 1.029 |
| 250 - 490 | $ 0.971 |
| 500+ | $ 0.925 |
Production pack (Reel)
Live stock
2470 in stock in the UK
Specifications
Brand
STMicroelectronics
Channel Type
N
Maximum Continuous Drain Current
4 A
Package Type
DPAK
Mounting Type
Surface Mount
Pin Count
3
Maximum Drain Source Resistance
1.73 Ω
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
5V
Minimum Gate Threshold Voltage
3V
Maximum Power Dissipation
60 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±30 V
Number of Elements per Chip
1
Height
2.17mm
Width
6.2mm
Minimum Operating Temperature
-55 °C
Forward Diode Voltage
1.5V
Maximum Operating Temperature
+150 °C
Length
6.6mm
Typical Gate Charge @ Vgs
5 nC @ 10 V
