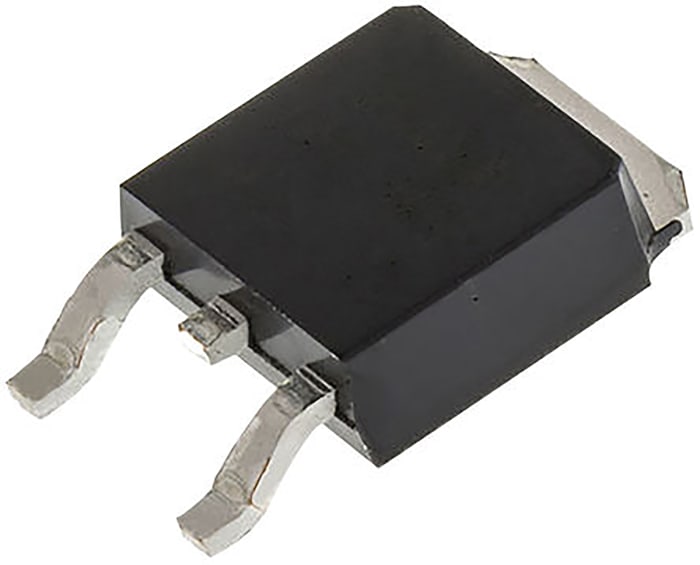

N-Channel MOSFET, 7 A, 3-Pin DPAK STMicroelectronics STD8N65M5
RS Stock No. 188-8291
Brand STMicroelectronics
Manufacturers Part No. STD8N65M5
2425 in stock in the UK
2425 in stock in the UK
$ 0.994
Each (On a Reel of 2500)
N-Channel MOSFET, 7 A, 3-Pin DPAK STMicroelectronics STD8N65M5
Buy in bulk
| quantity | Unit price |
|---|---|
| 2500 - 2500 | $ 0.994 |
| 5000+ | $ 0.956 |
Live stock
2425 in stock in the UK
Specifications
Brand
STMicroelectronics
Channel Type
N
Maximum Continuous Drain Current
7 A
Package Type
DPAK
Mounting Type
Surface Mount
Pin Count
3
Maximum Drain Source Resistance
600 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
5V
Minimum Gate Threshold Voltage
4V
Maximum Power Dissipation
70 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±25 V
Number of Elements per Chip
1
Height
2.17mm
Width
6.2mm
Minimum Operating Temperature
-55 °C
Forward Diode Voltage
1.5V
Maximum Operating Temperature
+150 °C
Length
6.6mm
Typical Gate Charge @ Vgs
15 nC @ 10 V
