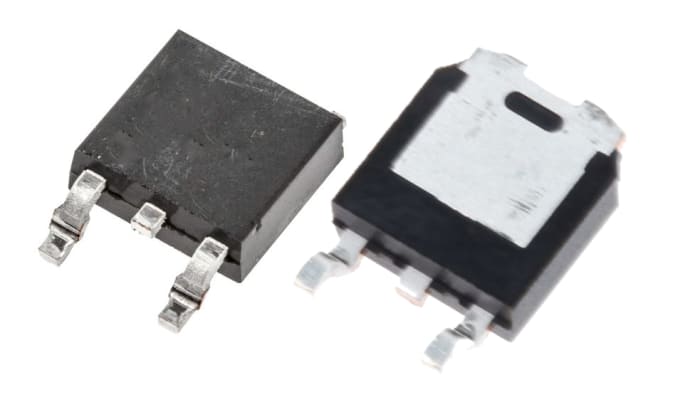

N-Channel MOSFET, 5 A, 3-Pin IPAK STMicroelectronics STD5NM60T4
RS Stock No. 188-8290
Brand STMicroelectronics
Manufacturers Part No. STD5NM60T4
1820 in stock in the UK
1820 in stock in the UK
$ 0.964
Each (On a Reel of 2500)
N-Channel MOSFET, 5 A, 3-Pin IPAK STMicroelectronics STD5NM60T4
Buy in bulk
| quantity | Unit price |
|---|---|
| 2500 - 2500 | $ 0.964 |
| 5000+ | $ 0.926 |
Live stock
1820 in stock in the UK
Specifications
Brand
STMicroelectronics
Channel Type
N
Maximum Continuous Drain Current
5 A
Package Type
IPAK
Mounting Type
Through Hole
Pin Count
3
Maximum Drain Source Resistance
1 Ω
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
5V
Minimum Gate Threshold Voltage
4V
Maximum Power Dissipation
96 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±30 V
Number of Elements per Chip
1
Height
6.2mm
Width
2.4mm
Minimum Operating Temperature
-55 °C
Forward Diode Voltage
1.5V
Maximum Operating Temperature
+150 °C
Length
6.6mm
Typical Gate Charge @ Vgs
13 nC @ 10 V
