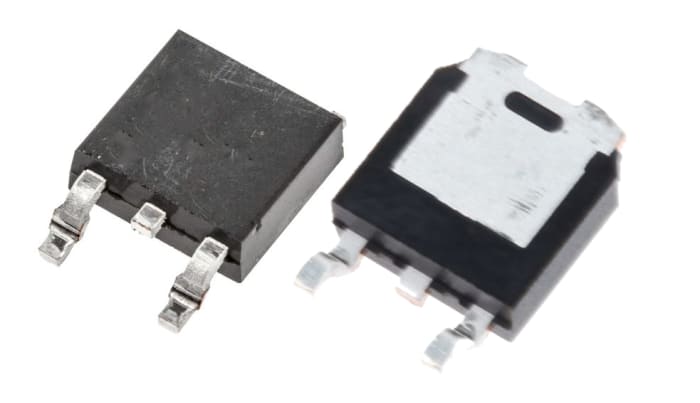

N-Channel MOSFET, 11 A, 3-Pin DPAK STMicroelectronics STD13N60DM2
RS Stock No. 188-8287
Brand STMicroelectronics
Manufacturers Part No. STD13N60DM2
Temporarily out of stock
Back order for despatch on 09/07/2021
Temporarily out of stock
$ 0.671
Each (On a Reel of 2500)
N-Channel MOSFET, 11 A, 3-Pin DPAK STMicroelectronics STD13N60DM2
Buy in bulk
| quantity | Unit price |
|---|---|
| 2500 - 2500 | $ 0.671 |
| 5000+ | $ 0.646 |
Live stock
Temporarily out of stock
Back order for despatch on 09/07/2021
Specifications
Brand
STMicroelectronics
Channel Type
N
Maximum Continuous Drain Current
11 A
Package Type
DPAK
Mounting Type
Surface Mount
Pin Count
3
Maximum Drain Source Resistance
360 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
5V
Minimum Gate Threshold Voltage
3V
Maximum Power Dissipation
110 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±25 V
Number of Elements per Chip
1
Height
2.17mm
Width
6.2mm
Minimum Operating Temperature
-55 °C
Typical Gate Charge @ Vgs
12.5 nC @ 10 V
Forward Diode Voltage
1.6V
Maximum Operating Temperature
+150 °C
Length
6.6mm
