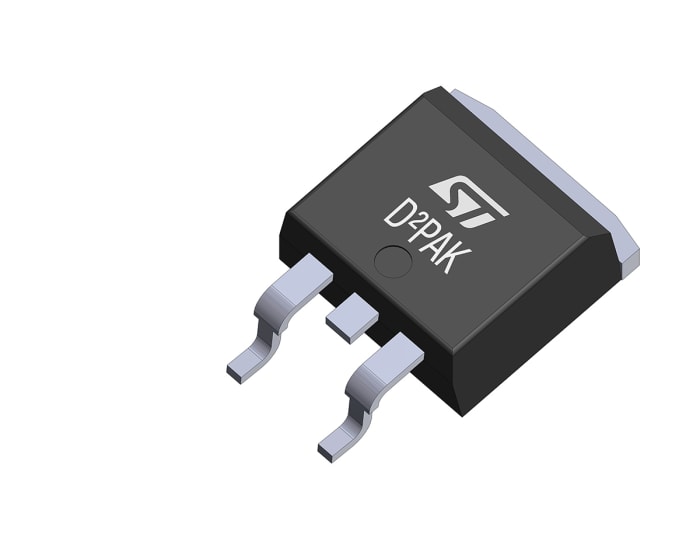

N-Channel MOSFET, 80 A, 55 V, 3-Pin D2PAK STMicroelectronics STB80NF55-06T4
Temporarily out of stock
Back order for despatch on 07/20/2021
$ 1.370
Each (On a Reel of 1000)
Buy in bulk
| quantity | Unit price |
|---|---|
| 1000 - 1000 | $ 1.370 |
| 2000 - 4000 | $ 1.302 |
| 5000+ | $ 1.269 |
Live stock
Temporarily out of stock
Back order for despatch on 07/20/2021
Specifications
Brand
STMicroelectronics
Channel Type
N
Maximum Continuous Drain Current
80 A
Maximum Drain Source Voltage
55 V
Package Type
D2PAK
Mounting Type
Surface Mount
Pin Count
3
Maximum Drain Source Resistance
6.5 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
4V
Minimum Gate Threshold Voltage
2V
Maximum Power Dissipation
300 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±20 V
Number of Elements per Chip
1
Minimum Operating Temperature
-55 °C
Forward Diode Voltage
1.5V
Maximum Operating Temperature
+175 °C
Length
10.4mm
Typical Gate Charge @ Vgs
142 nC @ 10 V
Height
4.37mm
Width
9.35mm
