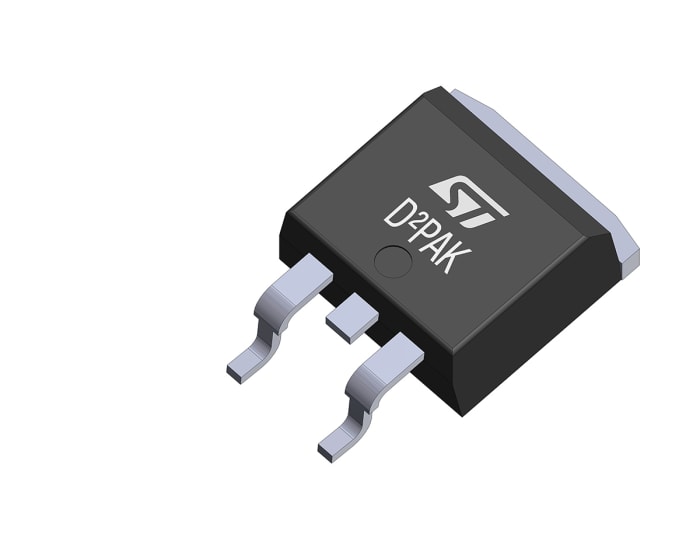

N-Channel MOSFET, 7 A, 3-Pin D2PAK STMicroelectronics STB43N65M5
RS Stock No. 188-8283
Brand STMicroelectronics
Manufacturers Part No. STB43N65M5
1000 in stock in the UK
1000 in stock in the UK
$ 3.314
Each (On a Reel of 1000)
N-Channel MOSFET, 7 A, 3-Pin D2PAK STMicroelectronics STB43N65M5
Buy in bulk
| quantity | Unit price |
|---|---|
| 1000 - 1000 | $ 3.314 |
| 2000+ | $ 4.068 |
Live stock
1000 in stock in the UK
Specifications
Brand
STMicroelectronics
Channel Type
N
Maximum Continuous Drain Current
7 A
Package Type
D2PAK
Mounting Type
Surface Mount
Pin Count
3
Maximum Drain Source Resistance
630 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
5V
Minimum Gate Threshold Voltage
3V
Maximum Power Dissipation
70 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±25 V
Number of Elements per Chip
1
Height
4.37mm
Width
9.35mm
Minimum Operating Temperature
-55 °C
Maximum Operating Temperature
+150 °C
Automotive Standard
AEC-Q101
Length
10.4mm
Typical Gate Charge @ Vgs
15 nC @ 10 V
Forward Diode Voltage
1.6V
