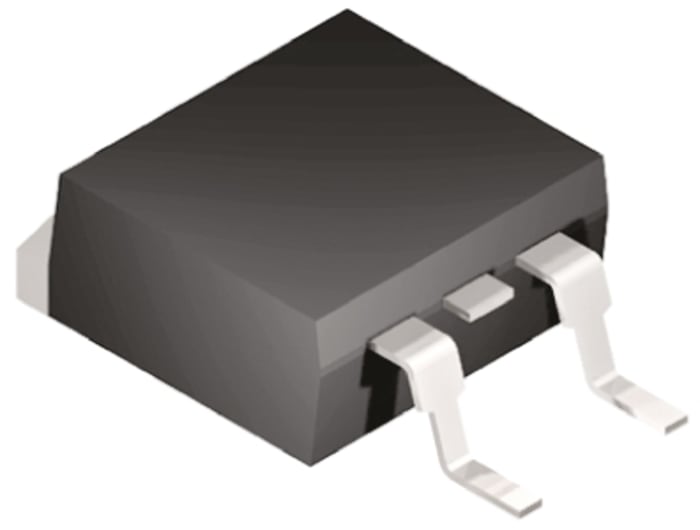

N-Channel MOSFET, 11 A, 800 V, 3-Pin D2PAK STMicroelectronics STB11NM80T4
Temporarily out of stock
Back order for despatch on 08/10/2021
$ 3.490
Each (On a Reel of 1000)
Buy in bulk
| quantity | Unit price |
|---|---|
| 1000 - 1000 | $ 3.490 |
| 2000+ | $ 3.361 |
Live stock
Temporarily out of stock
Back order for despatch on 08/10/2021
Specifications
Brand
STMicroelectronics
Channel Type
N
Maximum Continuous Drain Current
11 A
Maximum Drain Source Voltage
800 V
Package Type
D2PAK
Mounting Type
Surface Mount
Pin Count
3
Maximum Drain Source Resistance
400 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
5V
Minimum Gate Threshold Voltage
3V
Maximum Power Dissipation
150 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±30 V
Number of Elements per Chip
1
Height
4.37mm
Width
9.35mm
Minimum Operating Temperature
-65 °C
Forward Diode Voltage
0.86V
Maximum Operating Temperature
+150 °C
Length
10.4mm
Typical Gate Charge @ Vgs
43.6 nC @ 10 V
