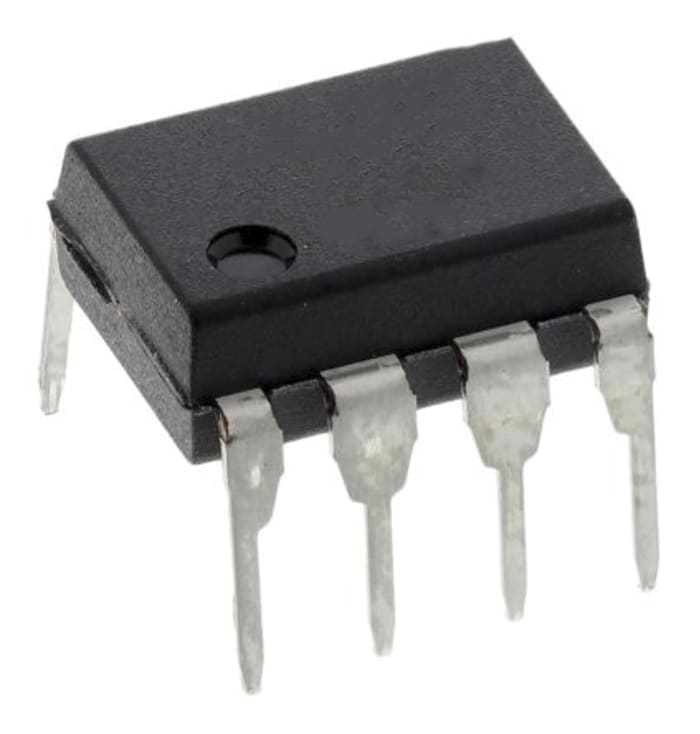

Cypress Semiconductor CY8C27143-24PXI, 32bit CPU Microcontroller, CY8C27, 24MHz, 16 kB Flash, 8-Pin PDIP

Brand

Cypress Semiconductor

Family Name

CY8C27

Package Type

PDIP

Mounting Type

Through Hole

Pin Count

8

Device Core

CPU

Data Bus Width

32bit

Program Memory Size

16 kB

Maximum Frequency

24MHz

RAM Size

256 B

ADC Channels

1

Number of SPI Channels

2

Typical Operating Supply Voltage

3 → 5.25 V

ADC Resolution

14bit

Minimum Operating Temperature

-40 °C

Dimensions

0.39 x 0.26 x 0.14in

Instruction Set Architecture

Harvard

Number of ADC Units

1

Program Memory Type

Flash

Maximum Operating Temperature

+85 °C

Number of UART Channels

2

Length

9.91mm

ADCs

1 (1 x 14 bit)

Number of Timers

2

Number of I2C Channels

1

Timer Resolution

8 bit, 32bit

Height

3.56mm

Width

6.6mm

Country of Origin

US
