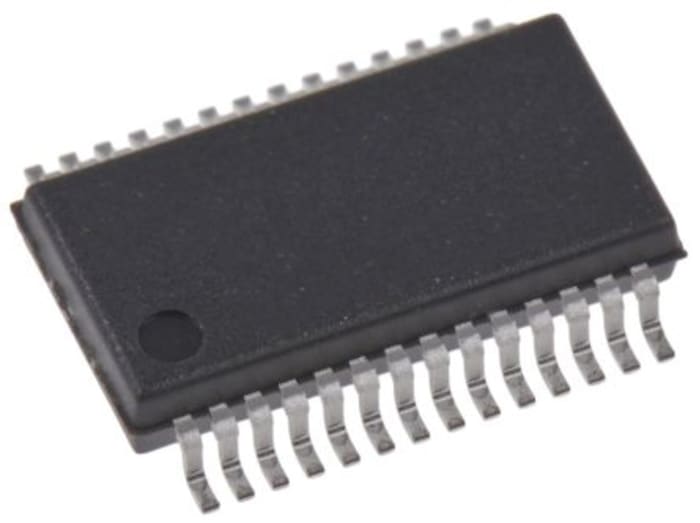

Cypress Semiconductor CY8C21534-24PVXI, 8bit CPU Microcontroller, CY8C21434, 24MHz, 8 kB Flash, 28-Pin SSOP

Brand

Cypress Semiconductor

Family Name

CY8C21434

Package Type

SSOP

Mounting Type

Surface Mount

Pin Count

28

Device Core

CPU

Data Bus Width

8bit

Program Memory Size

8 kB

Maximum Frequency

24MHz

RAM Size

512 kB

ADC Channels

28

Number of SPI Channels

1

Typical Operating Supply Voltage

2.4 → 5.25 V

Timer Resolution

8 bit, 32bit

Height

1.85mm

Width

5.6mm

ADC Resolution

10bit

Minimum Operating Temperature

-40 °C

Dimensions

10.4 x 5.6 x 1.85mm

Instruction Set Architecture

Harvard

Number of ADC Units

1

Program Memory Type

Flash

Maximum Operating Temperature

+85 °C

Number of UART Channels

1

Length

10.4mm

ADCs

1 (28 x 10 bit)

Number of Timers

2

Number of I2C Channels

1

Country of Origin

US
