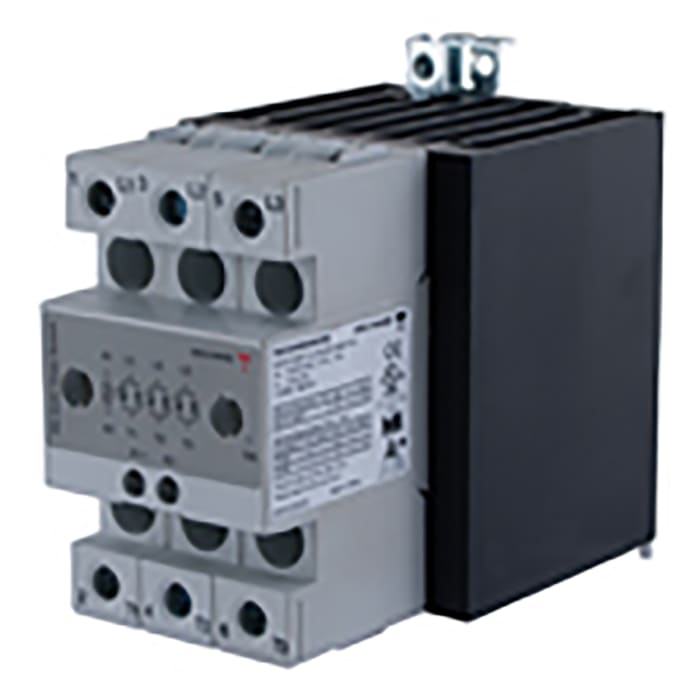

Carlo Gavazzi 50 A Solid State Relay, Zero Crossing, DIN Rail, Varistor, 660 V ac Maximum Load
RS Stock No. 188-5282
Brand Carlo Gavazzi
Manufacturers Part No. RGC2A60D40KGE
2 in stock in the UK
2 in stock in the UK
$ 160.95
Each
Carlo Gavazzi 50 A Solid State Relay, Zero Crossing, DIN Rail, Varistor, 660 V ac Maximum Load
Live stock
2 in stock in the UK
Specifications
Brand
Carlo Gavazzi
Minimum Load Current
400 mA
Maximum Load Current
50 A
Series
RGC2
Mounting Type
DIN Rail
Minimum Load Voltage
42 V ac
Maximum Load Voltage
660 V ac
Minimum Control Voltage
5 V dc
Maximum Control Voltage
32 V dc
Switching Type
Zero Crossing
Terminal Type
Screw
Output Device
Varistor
Maximum Turn On Time
1 s
Dimensions
72 x 125.5 x 110mm
Minimum Operating Temperature
-40°C
Relay Type
Solid State Relay
Number of Poles
2
Special Features
Heat Sinked
Height
110mm
Maximum Operating Temperature
+80°C
Off State Leakage Current
5 mA
Length
72mm
Operating Temperature Range
-40 → +80°C
Control Voltage Range
5 → 32 V dc
Load Voltage Range
42 → 600V ac
Depth
125.5mm
Country of Origin
MT
