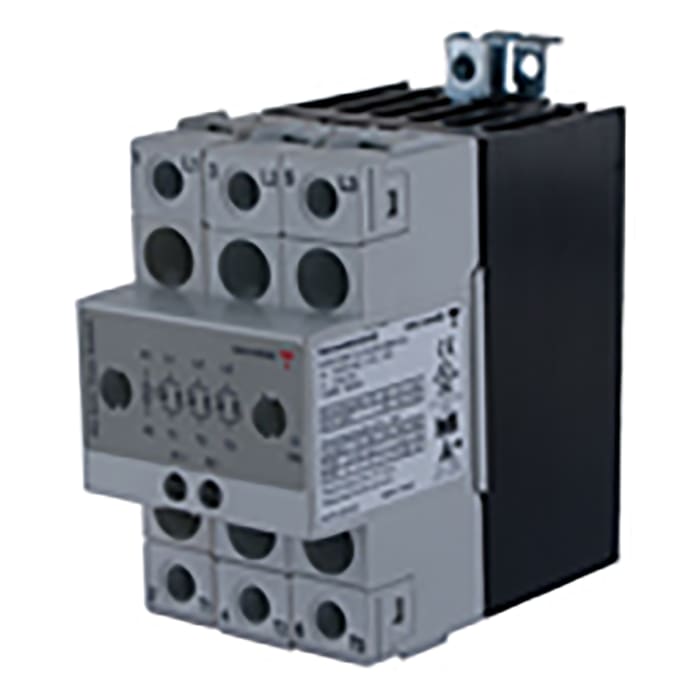

Carlo Gavazzi 32 A Solid State Relay, Zero Crossing, DIN Rail, Varistor, 660 V ac Maximum Load

Brand

Carlo Gavazzi

Minimum Load Current

250 mA

Maximum Load Current

32 A

Mounting Type

DIN Rail

Series

RGC2

Minimum Load Voltage

42 V ac

Maximum Load Voltage

660 V ac

Minimum Control Voltage

20 V ac, 24 V dc

Maximum Control Voltage

270 V ac, 190 V dc

Switching Type

Zero Crossing

Terminal Type

Screw

Output Device

Varistor

Maximum Turn On Time

1 s

Dimensions

54 x 102.5 x 110mm

Off State Leakage Current

5 mA

Length

54mm

Operating Temperature Range

-40 → +80°C

Control Voltage Range

20 → 270 V ac, 24 → 190 Vdc

Height

110mm

Maximum Operating Temperature

+80°C

Minimum Operating Temperature

-40°C

Load Voltage Range

42 → 600V ac

Depth

102.5mm

Special Features

Heat Sinked

Relay Type

Solid State Relay

Number of Poles

2

Country of Origin

MT
