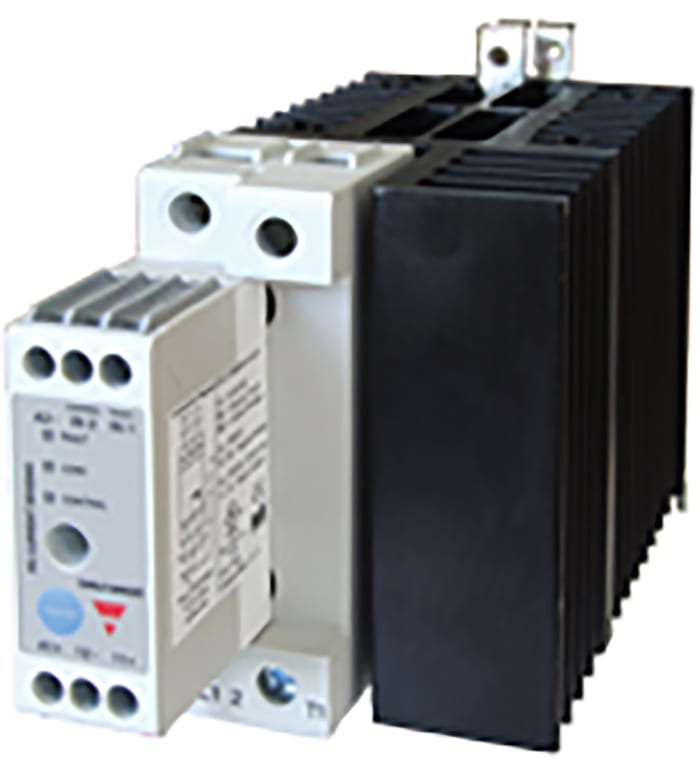

Carlo Gavazzi 65 A Solid State Relay, Zero Crossing, DIN Rail, PNP Open Collector, 600 V ac Maximum Load
RS Stock No. 188-5279
Brand Carlo Gavazzi
Manufacturers Part No. RGC1S60D61GGUP
2 in stock in the UK
2 in stock in the UK
$ 166.50
Each
Carlo Gavazzi 65 A Solid State Relay, Zero Crossing, DIN Rail, PNP Open Collector, 600 V ac Maximum Load
Live stock
2 in stock in the UK
Specifications
Brand
Carlo Gavazzi
Minimum Load Current
0.83 A
Maximum Load Current
65 A
Series
RGC1S
Mounting Type
DIN Rail
Minimum Load Voltage
42 V ac
Maximum Load Voltage
600 V ac
Minimum Control Voltage
4 V dc
Maximum Control Voltage
32 V dc
Switching Type
Zero Crossing
Terminal Type
Box Clamp
Output Device
PNP Open Collector
Maximum Turn On Time
1 s
Dimensions
70 x 167.5 x 110mm
Minimum Operating Temperature
-25°C
Height
110mm
Maximum Operating Temperature
+70°C
Off State Leakage Current
3 mA
Operating Temperature Range
-25 → +70°C
Control Voltage Range
4 → 32 V dc
Load Voltage Range
42 → 600V ac
Depth
167.5mm
Special Features
Heat Sinked
Relay Type
Solid State Relay
Number of Poles
1
Length
70mm
Country of Origin
MT
